FFS.01.250.DLAE24

Active

LEMO

1 HEADER 50Ω COAXIAL CONNECTORS (RF) ROHS

Search across all available documentation for this part.

Active

LEMO

1 HEADER 50Ω COAXIAL CONNECTORS (RF) ROHS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

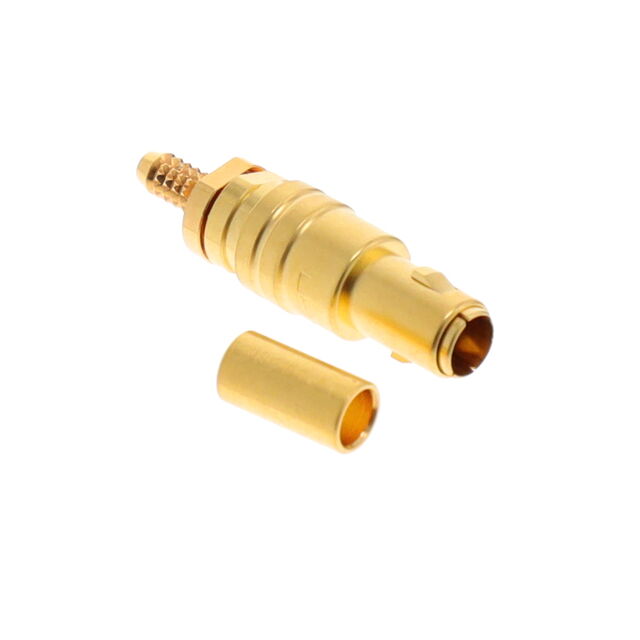

Miniature Coaxial Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Specification	FFS.01.250.DLAE24	FFS.01 Series

Accessory Type	-	Crimp Ferrule
Body Finish	Gold	Gold
Body Material	Brass	Brass
Cable Group	RG-178B, 196A	RG-178B, 196A, RG-174, 179B, 316, 187A, 188A
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	Miniature Coaxial	Miniature Coaxial
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder	Solder
Dielectric Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Fastening Type	Push-Pull	Push-Pull, Snap-On
For Use With/Related Products	-	01 Series Connector
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Ingress Protection	IP50	IP50
Mating Cycles	1000	1000
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	230 °C	230 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shield Termination	Crimp	Crimp
Voltage Rating	300 VDC	300 VDC

Part	For Use With/Related Products	Accessory Type	Ingress Protection	Center Contact Plating	Connector Type	Dielectric Material	Center Contact Material	Connector Style	Impedance	Shield Termination	Voltage Rating	Mounting Type	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Contact Termination	Number of Ports	Cable Group	Fastening Type	Body Finish	Body Material
LEMO FFS.01.160.DA	01 Series Connector	Crimp Ferrule
LEMO FFS.01.250.DLAE24			IP50	Gold	Male Pin, Plug	Polyetheretherketone (PEEK)	Brass	Miniature Coaxial	50 Ohms	Crimp	300 VDC	Free Hanging (In-Line)	Gold	230 °C	-55 °C	1000	Solder	1	196A, RG-178B	Push-Pull	Gold	Brass
LEMO FFS.01.250.DLAE31			IP50	Gold	Male Pin, Plug	Polyetheretherketone (PEEK)	Brass	Miniature Coaxial	50 Ohms	Crimp	300 VDC	Free Hanging (In-Line)	Gold	230 °C	-55 °C	1000	Solder	1	179B, 187A, 188A, 316, RG-174	Snap-On	Gold	Brass
