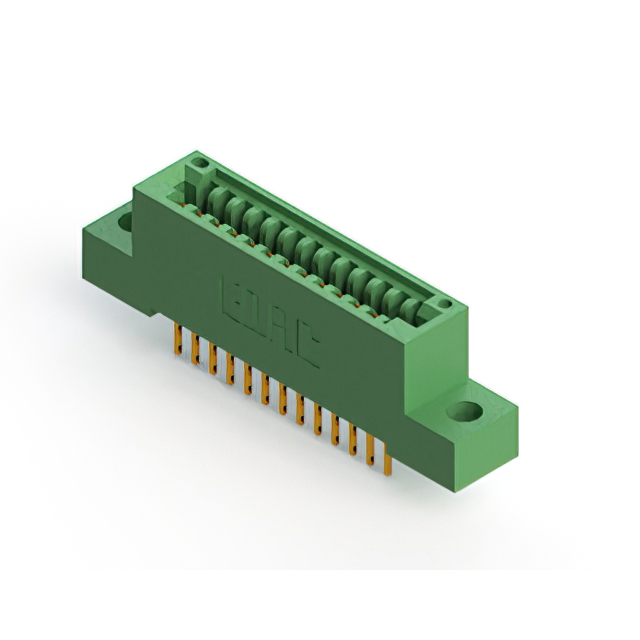

845-013-558-104
ActiveEDAC Inc.
CONN EDGE SINGLE FML 13POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-013-558-104
ActiveEDAC Inc.
CONN EDGE SINGLE FML 13POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-013-558-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 13 |
| Number of Positions/Bay/Row [custom] | 13 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
845-013 Series
...
| Part | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Termination | Read Out | Termination Rows | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Card Type | Number of Positions | Number of Positions/Bay/Row [custom] | Gender | Contact Finish | Color | Mounting Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Material - Insulation | Contact Material | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder Eyelet(s) | Single | 1 | 125 °C | -40 °C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Non Specified - Single Edge | 13 | 13 | Female | Gold | Green | Through Hole | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Diallyl Phthalate (DAP) | Copper Alloy | ||
EDAC Inc. | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | Single | 1 | 125 °C | -40 °C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Non Specified - Single Edge | 13 | 13 | Female | Gold | Green | Through Hole Right Angle | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Diallyl Phthalate (DAP) | Copper Alloy | ||
EDAC Inc. | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Wire Wrap | Single | 1 | 125 °C | -40 °C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Non Specified - Single Edge | 13 | 13 | Female | Gold | Green | Through Hole | Side Mount Opening Unthreaded | Diallyl Phthalate (DAP) | Copper Alloy | 3.25 mm | 0.128 in | ||
EDAC Inc. | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Wire Wrap | Single | 1 | 125 °C | -40 °C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Non Specified - Single Edge | 13 | 13 | Female | Gold | Green | Through Hole | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Diallyl Phthalate (DAP) | Copper Alloy | ||
EDAC Inc. | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | Single | 1 | 125 °C | -40 °C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Non Specified - Single Edge | 13 | 13 | Female | Gold | Green | Through Hole Right Angle | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Diallyl Phthalate (DAP) | Copper Alloy | ||
EDAC Inc. | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | Single | 1 | 125 °C | -40 °C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Non Specified - Single Edge | 13 | 13 | Female | Gold | Green | Through Hole Right Angle | M3 Threaded Insert Top Mount Opening | Diallyl Phthalate (DAP) | Copper Alloy | ||||
EDAC Inc. | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | Single | 1 | 125 °C | -40 °C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Non Specified - Single Edge | 13 | 13 | Female | Gold | Green | Through Hole | Diallyl Phthalate (DAP) | Copper Alloy | 3.25 mm | 0.128 in | |||
EDAC Inc. | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | Single | 1 | 125 °C | -40 °C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Non Specified - Single Edge | 13 | 13 | Female | Gold | Green | Through Hole | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Diallyl Phthalate (DAP) | Copper Alloy | ||
EDAC Inc. | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | Single | 1 | 125 °C | -40 °C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Non Specified - Single Edge | 13 | 13 | Female | Gold | Green | Through Hole Right Angle | Diallyl Phthalate (DAP) | Copper Alloy | |||||
EDAC Inc. | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | Single | 1 | 125 °C | -40 °C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Non Specified - Single Edge | 13 | 13 | Female | Gold | Green | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Diallyl Phthalate (DAP) | Copper Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
845-013 Series
13 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
