W4B81-8PG-3ES

Active

Conxall/Switchcraft

CONN RCPT MALE 8POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 8POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	W4B81-8PG-3ES

Applications	Lighting, Medical
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	23 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 HB
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions [custom]	8
Number of Positions [custom]	6
Number of Positions [custom]	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polybutylene Terephthalate (PBT)
Shielding	Unshielded
Termination	Solder
Voltage Rating	300 VDC

CONN RCPT MALE 8POS GOLD SOLDER

Part	Termination	Mounting Feature	Color	Orientation	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Mounting Type	Shielding	Connector Type	Voltage Rating	Insert Material	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Fastening Type	Applications	Ingress Protection	Current Rating (Amps)	Contact Finish - Mating	Material Flammability Rating	Contact Material
Conxall/Switchcraft W4B81-8PG-3ES	Solder	Bulkhead - Front Side Nut	Black	Keyed	8	6	2	Panel Mount, Through Hole	Unshielded	Male Pins, Receptacle	300 VDC	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	85 °C	-40 °C	Plastic	Bayonet Lock	Lighting, Medical	IP67 - Dust Tight, Waterproof	23 A	Gold	UL94 HB	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 10.97

General part information

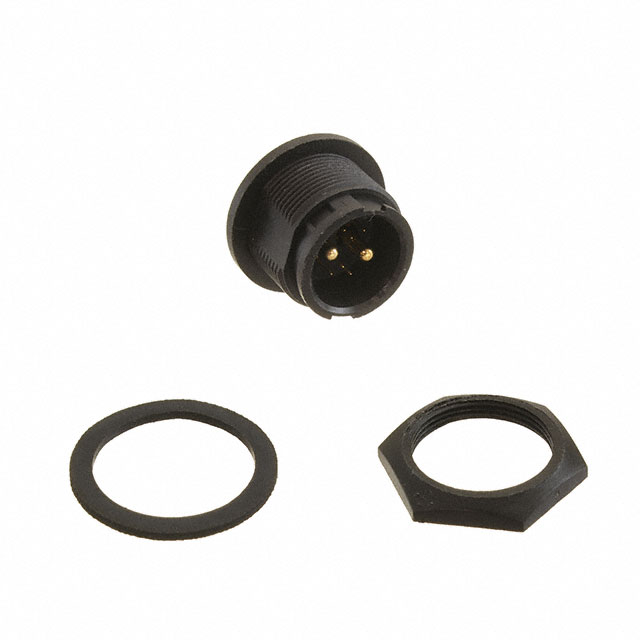

8 (6 + 2 Power) Position Circular Connector Receptacle, Male Pins Solder
