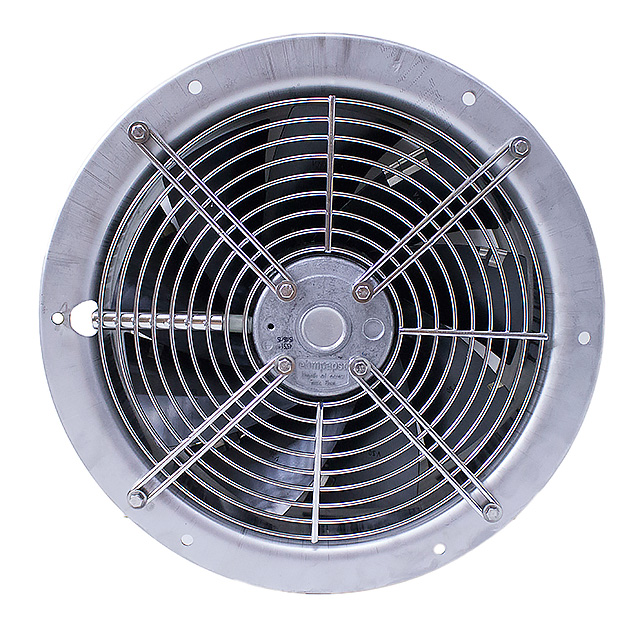

W2D250-CH12-14

Active

ebm-papst Inc.

FAN IMP MTRZD 320X85MM 440VAC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN IMP MTRZD 320X85MM 440VAC

Technical Specifications

Parameters and characteristics for this part

Specification	W2D250-CH12-14

Approval Agency	CE
Bearing Type	Ball
Current Rating (Amps)	0.2 A
Fan Type	Motorized Impellers
Features	Thermal Overload Protector (TOP)
Ingress Protection	IP44
Material - Blade	Steel
Operating Temperature [Max]	45 °C
Operating Temperature [Max]	45 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	75 W
RPM	1850 RPM
Size / Dimension	Round
Size / Dimension [diameter]	320 mm
Termination	9 Wire Leads
Voltage - Rated	440 VAC
Width [y]	85 mm

Part	Width [y]	Approval Agency	Material - Blade	Termination	Bearing Type	Fan Type	Voltage - Rated	RPM	Current Rating (Amps)	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Size / Dimension [diameter]	Size / Dimension	Ingress Protection	Voltage - Rated [Max] [custom]	Voltage - Rated [Min] [custom]	Current Rating (Amps) [Max]	Current Rating (Amps) [Min]	Static Pressure	Static Pressure	Material - Frame	Air Flow	Air Flow	Size / Dimension [y]	Size / Dimension [x]
ebm-papst Inc. W2D250-CH12-14	85 mm	CE	Steel	9 Wire Leads	Ball	Motorized Impellers	440 VAC	1850 RPM	0.2 A	75 W	45 °C	-40 °C	45 °C	-40 °C	Thermal Overload Protector (TOP)	320 mm	Round	IP44
ebm-papst Inc. W2D250-CA06-52	85 mm	CE CSA UL	Steel	9 Wire Leads with Splice Terminals	Ball	Tubeaxial 3 Phase		2900 RPM		150 W	65 °C	-25 °C	65 °C	-25 °C	Dual Voltage Thermal Overload Protector (TOP)	320 mm	Round	IP44	460 VAC	265 VAC	0.38 A	0.22 A	0.502 in H2O	125 Pa	Steel
ebm-papst Inc. W2D250-CA02-01	85 mm	CE EAC	Steel	7 Wire Leads with Splice Terminals	Ball	Tubeaxial 3 Phase	230 VAC 400 VAC	2950 RPM		160 W	40 °C	-25 °C	40 °C	-25 °C	Dual Voltage	320 mm	Round	IP44			0.45 A	0.26 A	1.204 in H2O	299.9 Pa	Steel	618.5 CFM	17.32 m³/min
ebm-papst Inc. W2D250-HH14-09	90.2 mm	CCC CE CSA EAC UL	Steel	Terminal Block	Ball	Tubeaxial 3 Phase	400 VAC 460 VAC	2800 RPM		145 W 175 W	60 °C	-25 °C			Dual Voltage			IP44			0.24 A	0.23 A			Aluminum			320 mm	320 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Motorized Impellers 440VAC Round - 320mm Dia Ball 9 Wire Leads
