08CH-A-02-IDC
UnknownAdam Tech

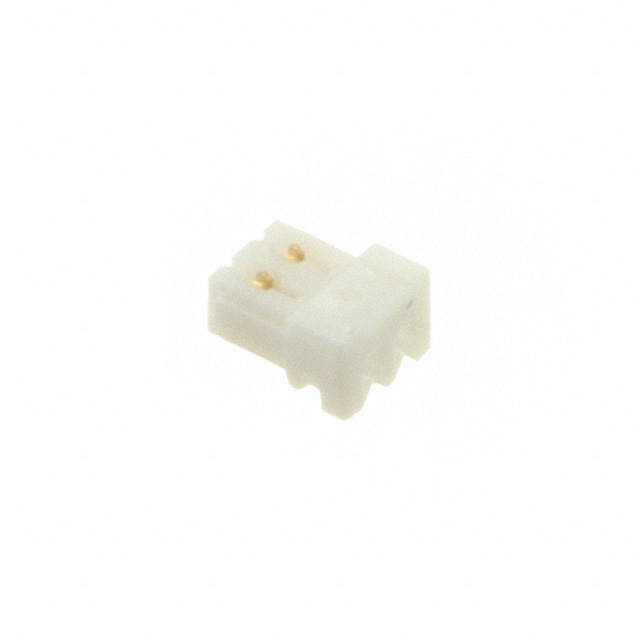

WIRE TO BOARD CRIMP HOUSING 2P 0
Deep-Dive with AI
Search across all available documentation for this part.
08CH-A-02-IDC
UnknownAdam Tech
WIRE TO BOARD CRIMP HOUSING 2P 0
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 08CH-A-02-IDC | 08CH-A Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Natural | Natural |
| Connector Type | Receptacle | Receptacle |
| Contact Finish | Tin | Tin, Gold |
| Contact Finish Thickness | - | Flash |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Friction Lock | Friction Lock |
| Features | Closed End | Closed End |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 2 | 2 - 10 |
| Number of Rows | 1 | 1 |
| Pitch [x] | 0.8 mm | 0.8 mm |
| Pitch [x] | 0.031 in | 0.031 in |
| Wire Gauge [Max] | 36 AWG | 36 AWG |
| Wire Gauge [Min] | 32 AWG | 32 AWG |
| Wire Type | Discrete | Discrete |
08CH-A Series
WIRE TO BOARD CRIMP HOUSING 2P 0
| Part | Contact Type | Wire Gauge [Min] | Wire Gauge [Max] | Fastening Type | Contact Finish | Mounting Type | Color | Features | Pitch [x] | Pitch [x] | Wire Type | Number of Rows | Cable Termination | Connector Type | Number of Positions | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech 08CH-A-02-IDC | Female Socket | 32 AWG | 36 AWG | Friction Lock | Tin | Free Hanging (In-Line) | Natural | Closed End | 0.8 mm | 0.031 in | Discrete | 1 | IDC | Receptacle | 2 | |
Adam Tech 08CH-A-08-G-IDC | Female Socket | 32 AWG | 36 AWG | Friction Lock | Gold | Free Hanging (In-Line) | Natural | Closed End | 0.8 mm | 0.031 in | Discrete | 1 | IDC | Receptacle | 8 | Flash |
Adam Tech 08CH-A-06-G-IDC | Female Socket | 32 AWG | 36 AWG | Friction Lock | Gold | Free Hanging (In-Line) | Natural | Closed End | 0.8 mm | 0.031 in | Discrete | 1 | IDC | Receptacle | 6 | Flash |
Adam Tech 08CH-A-10-IDC | Female Socket | 32 AWG | 36 AWG | Friction Lock | Tin | Free Hanging (In-Line) | Natural | Closed End | 0.8 mm | 0.031 in | Discrete | 1 | IDC | Receptacle | 10 | |
Adam Tech 08CH-A-05-G-IDC | Female Socket | 32 AWG | 36 AWG | Friction Lock | Gold | Free Hanging (In-Line) | Natural | Closed End | 0.8 mm | 0.031 in | Discrete | 1 | IDC | Receptacle | Flash | |
Adam Tech 08CH-A-02-G-IDC | Female Socket | 32 AWG | 36 AWG | Friction Lock | Gold | Free Hanging (In-Line) | Natural | Closed End | 0.8 mm | 0.031 in | Discrete | 1 | IDC | Receptacle | 2 | Flash |
Adam Tech 08CH-A-04-G-IDC | Female Socket | 32 AWG | 36 AWG | Friction Lock | Gold | Free Hanging (In-Line) | Natural | Closed End | 0.8 mm | 0.031 in | Discrete | 1 | IDC | Receptacle | 4 | Flash |
Adam Tech 08CH-A-09-IDC | Female Socket | 32 AWG | 36 AWG | Friction Lock | Tin | Free Hanging (In-Line) | Natural | Closed End | 0.8 mm | 0.031 in | Discrete | 1 | IDC | Receptacle | 9 | |
Adam Tech 08CH-A-03-G-IDC | Female Socket | 32 AWG | 36 AWG | Friction Lock | Gold | Free Hanging (In-Line) | Natural | Closed End | 0.8 mm | 0.031 in | Discrete | 1 | IDC | Receptacle | Flash | |
Adam Tech 08CH-A-10-G-IDC | Female Socket | 32 AWG | 36 AWG | Friction Lock | Gold | Free Hanging (In-Line) | Natural | Closed End | 0.8 mm | 0.031 in | Discrete | 1 | IDC | Receptacle | 10 | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.64 | |
| 10 | $ 0.49 | |||
| 25 | $ 0.44 | |||
| 50 | $ 0.40 | |||
| 100 | $ 0.37 | |||
| 250 | $ 0.34 | |||
| 500 | $ 0.31 | |||
| 1000 | $ 0.29 | |||
Description
General part information
08CH-A Series
2 Position Rectangular Receptacle Connector IDC Tin 32-36 AWG
