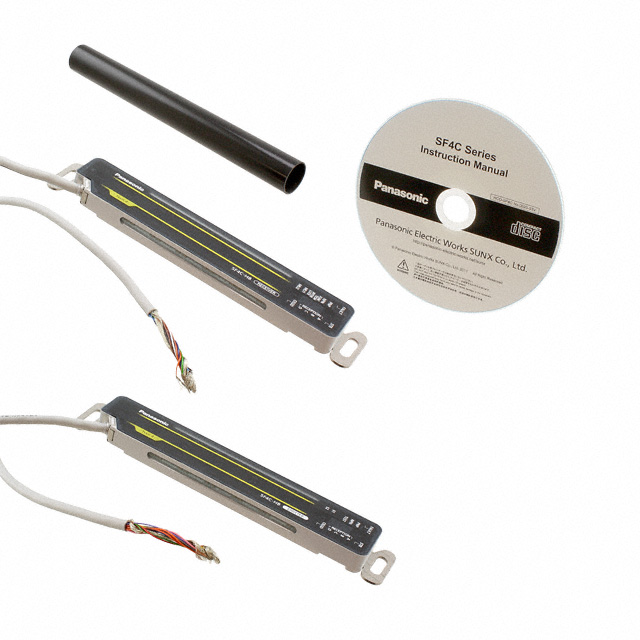

Specification	SF4C-H8

Beam Pitch	20 mm
Detection Capability	25 mm
Features	Muting Function, Blanking
Ingress Protection Description	Dust Tight, Water Resistant, Waterproof
Ingress Protection IP Rating	IP67, IP65
Number of Beams	8
Operating Range (Max)	3 m
Operating Range (Min)	0.1 m
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-10 °C
Protection	Hand
Protective Height	160 mm
Voltage - Supply	24 VDC

SF4C Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection Description	Ingress Protection IP Rating	Protection	Number of Beams	Features	Detection Capability	Operating Range (Max)	Operating Range (Min)	Protective Height	Beam Pitch	Voltage - Supply

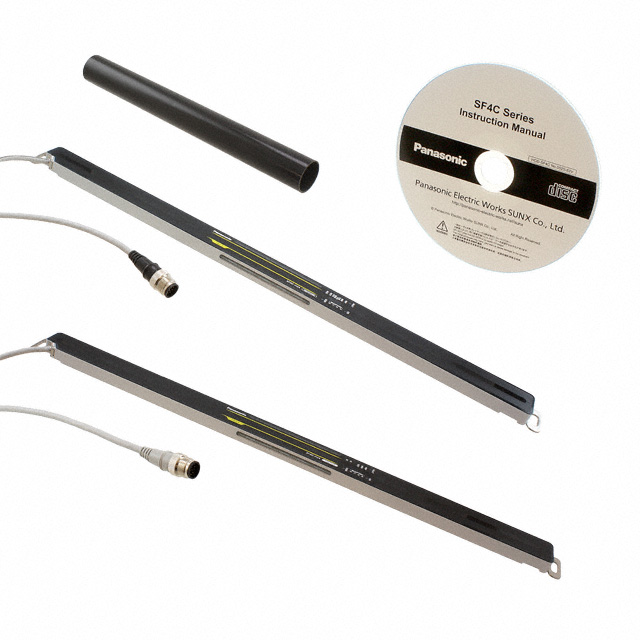

Panasonic Industrial Automation Sales SF4C-H24-J05	-10 °C	55 °C	Dust Tight Water Resistant Waterproof	IP65 IP67	Hand	24	Blanking Muting Function	25 mm	3 m	0.1 m	480 mm	20 mm	24 VDC

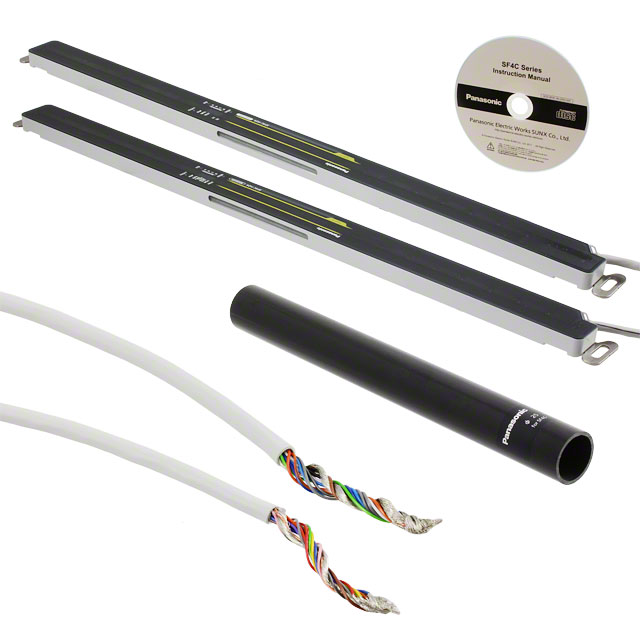

Panasonic Industrial Automation Sales SF4C-H24	-10 °C	55 °C	Dust Tight Water Resistant Waterproof	IP65 IP67	Hand	24	Blanking Muting Function	25 mm	3 m	0.1 m	480 mm	20 mm	24 VDC
Panasonic Industrial Automation Sales SF4C-F23	-10 °C	55 °C	Dust Tight Water Resistant Waterproof	IP65 IP67	Finger	23	Blanking Muting Function	14 mm	3 m	0.1 m	240 mm	10 mm	24 VDC
Panasonic Industrial Automation Sales SF4C-F23-J05	-10 °C	55 °C	Dust Tight Water Resistant Waterproof	IP65 IP67	Finger	23	Blanking Muting Function	14 mm	3 m	0.1 m	240 mm	10 mm	24 VDC
Panasonic Industrial Automation Sales SF4C-F31	-10 °C	55 °C	Dust Tight Water Resistant Waterproof	IP65 IP67	Finger	31	Blanking Muting Function	14 mm	3 m	0.1 m	320 mm	10 mm	24 VDC
Panasonic Industrial Automation Sales SF4C-F47-J05	-10 °C	55 °C	Dust Tight Water Resistant Waterproof	IP65 IP67	Finger	47	Blanking Muting Function	14 mm	3 m	0.1 m	480 mm	10 mm	24 VDC
Panasonic Industrial Automation Sales SF4C-F63	-10 °C	55 °C	Dust Tight Water Resistant Waterproof	IP65 IP67	Finger	63	Blanking Muting Function	14 mm	3 m	0.1 m	640 mm	10 mm	24 VDC

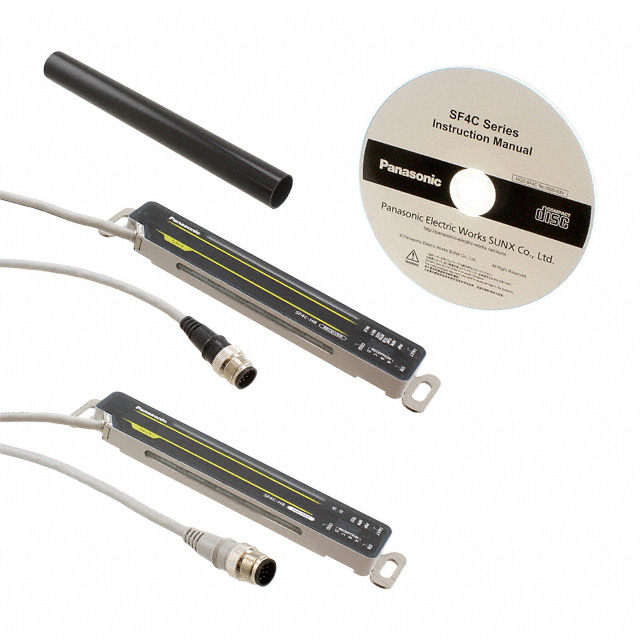

Panasonic Industrial Automation Sales SF4C-H8-J05	-10 °C	55 °C	Dust Tight Water Resistant Waterproof	IP65 IP67	Hand	8	Blanking Muting Function	25 mm	3 m	0.1 m	160 mm	20 mm	24 VDC
Panasonic Industrial Automation Sales SF4C-F31-J05	-10 °C	55 °C	Dust Tight Water Resistant Waterproof	IP65 IP67	Finger	31	Blanking Muting Function	14 mm	3 m	0.1 m	320 mm	10 mm	24 VDC
Panasonic Industrial Automation Sales SF4C-H8	-10 °C	55 °C	Dust Tight Water Resistant Waterproof	IP65 IP67	Hand	8	Blanking Muting Function	25 mm	3 m	0.1 m	160 mm	20 mm	24 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

SF4C Series

SF4C-H8 | Datasheet
