Specification	165X14869X

Accessory Type	One Piece Backshell
Cable Exit Angle	180 °
Cable Type	Round
Compatible D-Sub Size	9pos, HD15pos
Compatible Shell Size	E
Material	Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions	9
Primary Material	Plastic
Shielding	Unshielded

165X148 Series

Part	Color	Compatible D-Sub Size	Cable Exit Angle	Primary Material	Shielding	Features	Cable Type	Compatible Shell Size	Material	Number of Positions	Accessory Type	Hardware
McGill Microwave Systems 165X14879X	Black	15pos HD26pos	180 °	Plastic	Unshielded	Mating Screws 4-40	Round	A	Glass Filled Polybutylene Terephthalate (PBT)	15	Two Piece Backshell

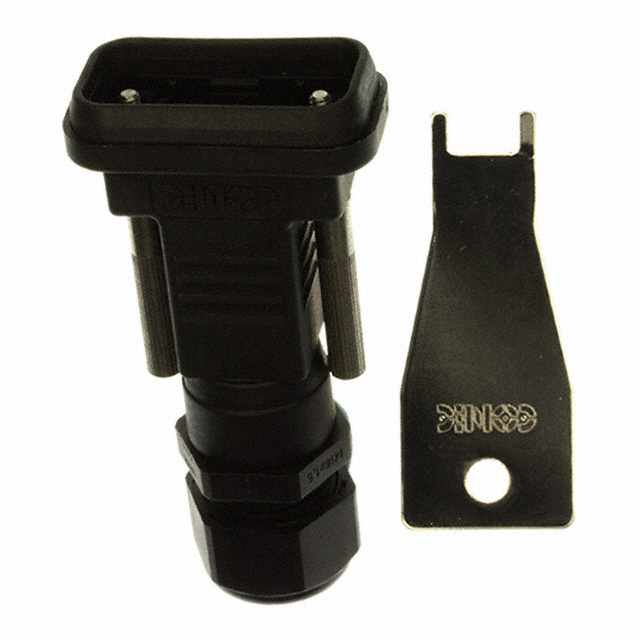

McGill Microwave Systems 165X14819XE	Black	9pos HD15pos	180 °	Plastic	Unshielded	Dust Tight/Waterproof (IP67) Mating Screws 4-40	Round	E	Glass Filled Polybutylene Terephthalate (PBT)	9	One Piece Backshell	Cable Clamp
McGill Microwave Systems 165X14849X	Black	37pos HD62pos	180 °	Plastic	Unshielded	Dust Tight/Waterproof (IP67) Mating Screws 4-40	Round	C	Glass Filled Polybutylene Terephthalate (PBT)	37 pos	One Piece Backshell

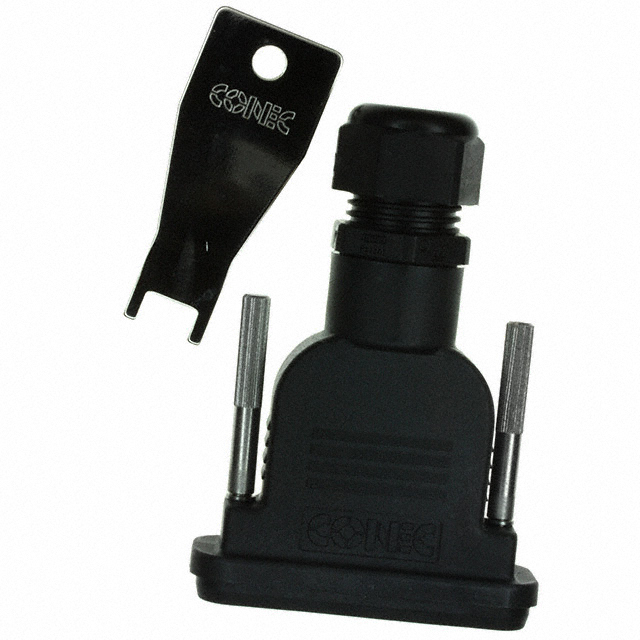

McGill Microwave Systems 165X14839XE	Black	25pos HD44pos	180 °	Plastic	Unshielded	Dust Tight/Waterproof (IP67) Mating Screws 4-40	Round	B	Glass Filled Polybutylene Terephthalate (PBT)	25	One Piece Backshell	Cable Clamp
McGill Microwave Systems 165X14859X	Black	50pos HD78pos	180 °	Plastic	Unshielded	Mating Screws 4-40	Round	D	Glass Filled Polybutylene Terephthalate (PBT)	50	Two Piece Backshell
McGill Microwave Systems 165X14889X	Black	25pos HD44pos	180 °	Plastic	Unshielded	Mating Screws 4-40	Round	B	Glass Filled Polybutylene Terephthalate (PBT)	25	Two Piece Backshell
McGill Microwave Systems 165X14869X		9pos HD15pos	180 °	Plastic	Unshielded		Round	E	Glass Filled Polybutylene Terephthalate (PBT)	9	One Piece Backshell
