Q-1U01I0005.75M
ActiveAmphenol Custom Cable

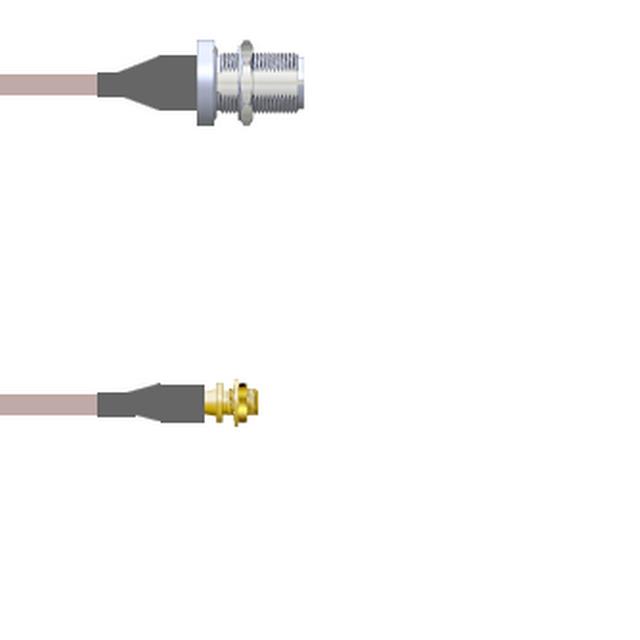

CBL ASSY MMCX-NTYPE JK-JK 29.53"
Deep-Dive with AI
Search across all available documentation for this part.
Q-1U01I0005.75M
ActiveAmphenol Custom Cable
CBL ASSY MMCX-NTYPE JK-JK 29.53"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-1U01I0005.75M |
|---|---|
| 1st Connector | MMCX Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Type | RG-316 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length | 29.53 " |
| Length | 750 mm |
| Overall Impedance | 50 Ohms |
| Style | MMCX to N-Type |
Q-1U01I0 Series
| Part | Style | 2nd Contact Gender | 2nd Connector Mounting Type | Color | 2nd Connector Mounting Feature | Overall Impedance | 1st Connector | Features | 1st Connector Mounting Feature | Cable Type | Length | Length | Length | 2nd Connector | Frequency - Max [Max] | 1st Connector Mounting Type | 1st Contact Gender | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | MMCX to N-Type | Female | Panel Mount | Black | Bulkhead - Front Side Nut | 50 Ohms | MMCX Jack | Shielded | Bulkhead - Front Side Nut | RG-174 | 2.7 m | 9 ft | 108 in | N-Type Jack | 6000 MHz | Panel Mount | Female | ||
Amphenol Custom Cable | MMCX to N-Type | Female | Panel Mount | Copper | Bulkhead - Front Side Nut | 50 Ohms | MMCX Jack | Shielded | Bulkhead - Front Side Nut | RG-316 | N-Type Jack | 6000 MHz | Panel Mount | Female | 9.843 " | 250 mm | |||
Amphenol Custom Cable | MMCX to N-Type | Female | Panel Mount | Black | Bulkhead - Front Side Nut | 50 Ohms | MMCX Jack | Shielded | Bulkhead - Front Side Nut | RG-174 | 1 m | 3.3 ft | 39.4 in | N-Type Jack | 6000 MHz | Panel Mount | Female | ||
Amphenol Custom Cable | MMCX to N-Type | Female | Panel Mount | Copper | Bulkhead - Front Side Nut | 50 Ohms | MMCX Jack | Shielded | Bulkhead - Front Side Nut | RG-316 | 750 mm | 29.53 " | N-Type Jack | 6000 MHz | Panel Mount | Female | |||
Amphenol Custom Cable | MMCX to N-Type | Female | Panel Mount | Black | Bulkhead - Front Side Nut | 50 Ohms | MMCX Jack | Shielded | Bulkhead - Front Side Nut | RG-174 | N-Type Jack | 6000 MHz | Panel Mount | Female | 9.843 " | 250 mm | |||
Amphenol Custom Cable | MMCX to N-Type | Female | Panel Mount | Copper | Bulkhead - Front Side Nut | 50 Ohms | MMCX Jack | Shielded | Bulkhead - Front Side Nut | RG-316 | 3 m | 9.8 ' | 118.1 in | N-Type Jack | 6000 MHz | Panel Mount | Female | ||
Amphenol Custom Cable | MMCX to N-Type | Female | Panel Mount | Black | Bulkhead - Front Side Nut | 50 Ohms | MMCX Jack | Shielded | Bulkhead - Front Side Nut | RG-174 | 609.6 mm | 24 " | N-Type Jack | 6000 MHz | Panel Mount | Female | |||
Amphenol Custom Cable | MMCX to N-Type | Female | Panel Mount | Black | Bulkhead - Front Side Nut | 50 Ohms | MMCX Jack | Shielded | Bulkhead - Front Side Nut | RG-174 | 152.4 mm | 6 in | N-Type Jack | 6000 MHz | Panel Mount | Female | |||
Amphenol Custom Cable | MMCX to N-Type | Female | Panel Mount | Copper | Bulkhead - Front Side Nut | 50 Ohms | MMCX Jack | Shielded | Bulkhead - Front Side Nut | RG-316 | 76.2 mm | 3 in | N-Type Jack | 6000 MHz | Panel Mount | Female | |||
Amphenol Custom Cable | MMCX to N-Type | Female | Panel Mount | Copper | Bulkhead - Front Side Nut | 50 Ohms | MMCX Jack | Shielded | Bulkhead - Front Side Nut | RG-316 | 91.44 cm | 36 in | N-Type Jack | 6000 MHz | Panel Mount | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 160.84 | |
| 25 | $ 157.75 | |||
| 50 | $ 154.67 | |||
| 100 | $ 151.59 | |||
| 250 | $ 148.51 | |||
Description
General part information
Q-1U01I0 Series
Cable Assembly Coaxial MMCX to N-Type RG-316 29.53" (750.00mm)
