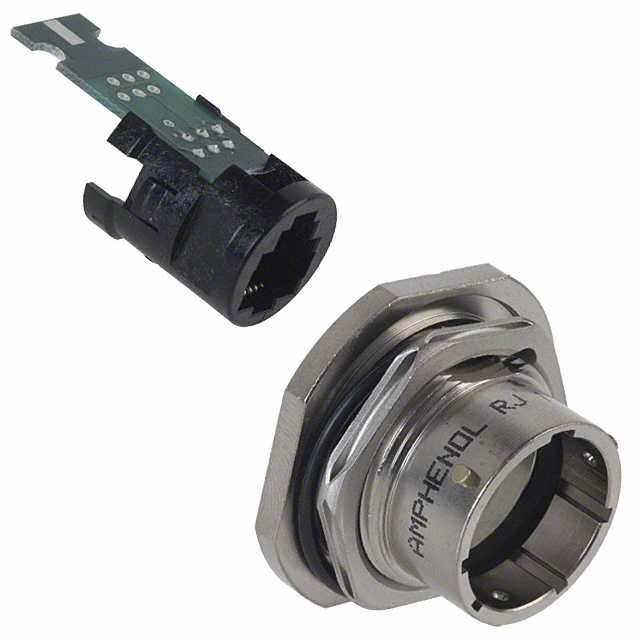

Specification	RJ11F72N

Connector Type	Jack, RJ25, RJ11, RJ12, RJ14
Features	Circular Bayonet Coupling
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
LED Color	Does Not Contain LED
Mounting Type	Bulkhead, Panel Mount
Number of Contacts	6
Number of Ports	1
Number of Positions	6
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation	Straight
Ratings	Cat5e
Shielding	Unshielded
Tab Direction	User Selectable
Termination	Solder

RJ11F Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Convert From (Adapter End)	Ingress Protection Description	Ingress Protection IP Rating	Type	Finish	Shell Material	Mounting Type	Mounting Feature	Features	Shielding	Convert To (Adapter End)	Accessory Type	For Use With/Related Products	Number of Ports	Connector Type	Termination	Ratings	LED Color	Tab Direction	Orientation	Number of Rows	Number of Contacts	Number of Positions	Shell Material, Finish	Color	Note	Mating Cycles	Fastening Type
McGill Microwave Systems RJ11F71N	-40 °C	85 °C	6p6c (RJ11) Jack	Dust Tight Waterproof	IP67	Coupler	Nickel Plated	Metal	Bulkhead Panel Mount	Front Side Nut	Circular Bayonet Coupling	Unshielded	6p6c (RJ11) Jack

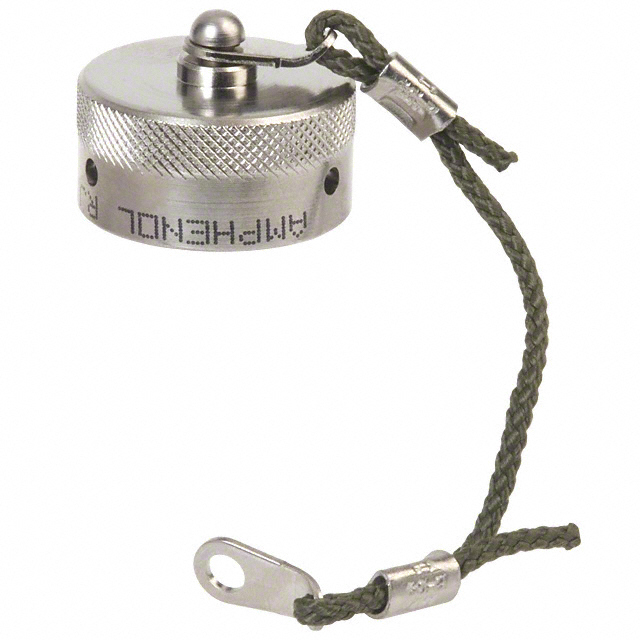

McGill Microwave Systems RJ11FC2N											Lanyard			Cap (Cover)	RJ11F Series Receptacle
McGill Microwave Systems RJ11FC6N											Lanyard			Cap (Cover)	RJ11F Series Plug
McGill Microwave Systems RJ11F72G	-40 °C	85 °C		Dust Tight Waterproof	IP67				Bulkhead Panel Mount		Circular Bayonet Coupling	Unshielded				1	Jack RJ11 RJ12 RJ14 RJ25	Solder	Cat5e	Does Not Contain LED	User Selectable	Straight	1	6	6

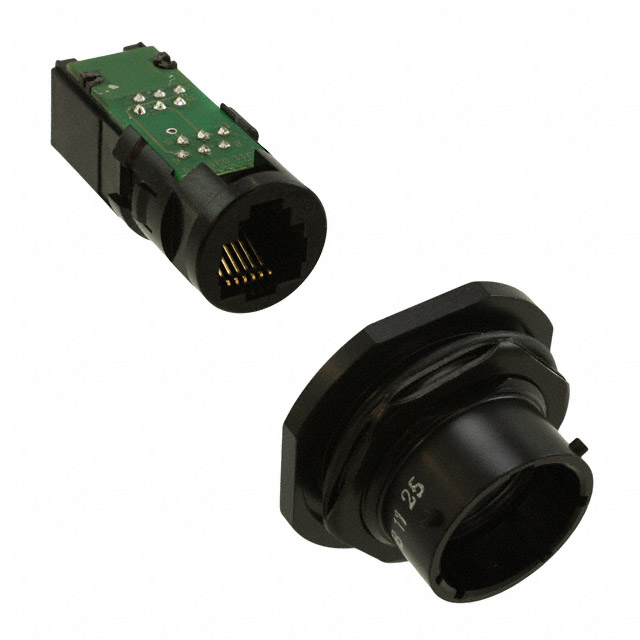

McGill Microwave Systems RJ11F71B	-40 °C	85 °C	6p6c (RJ11) Jack	Dust Tight Waterproof	IP67	Coupler			Bulkhead Panel Mount	Front Side Nut	Circular Bayonet Coupling	Unshielded	6p6c (RJ11) Jack													Metal
McGill Microwave Systems RJ11F22B	-40 °C	85 °C		Dust Tight Waterproof	IP67				Panel Mount Square Flange		Circular Bayonet Coupling	Unshielded				1	Jack RJ11 RJ12 RJ14 RJ25	Solder	Cat5e	Does Not Contain LED	User Selectable	Straight	1	6	6
McGill Microwave Systems RJ11FC2G											Lanyard			Cap (Cover)	RJ11F Series Receptacle												Olive
McGill Microwave Systems RJ11F6B	-40 °C	85 °C		Dust Tight Waterproof	IP67				Free Hanging (In-Line)		Shock Resistant Toolless Vibration Resistant	Unshielded					Housing for Prewired RJ11 Cordset										Black	Plug Not Provided	500 cycles	Bayonet Lock
McGill Microwave Systems RJ11F72N	-40 °C	85 °C		Dust Tight Waterproof	IP67				Bulkhead Panel Mount		Circular Bayonet Coupling	Unshielded				1	Jack RJ11 RJ12 RJ14 RJ25	Solder	Cat5e	Does Not Contain LED	User Selectable	Straight	1	6	6
McGill Microwave Systems RJ11F72B	-40 °C	85 °C		Dust Tight Waterproof	IP67				Bulkhead Panel Mount		Circular Bayonet Coupling	Unshielded				1	Jack RJ11 RJ12 RJ14 RJ25	Solder	Cat5e	Does Not Contain LED	User Selectable	Straight	1	6	6
