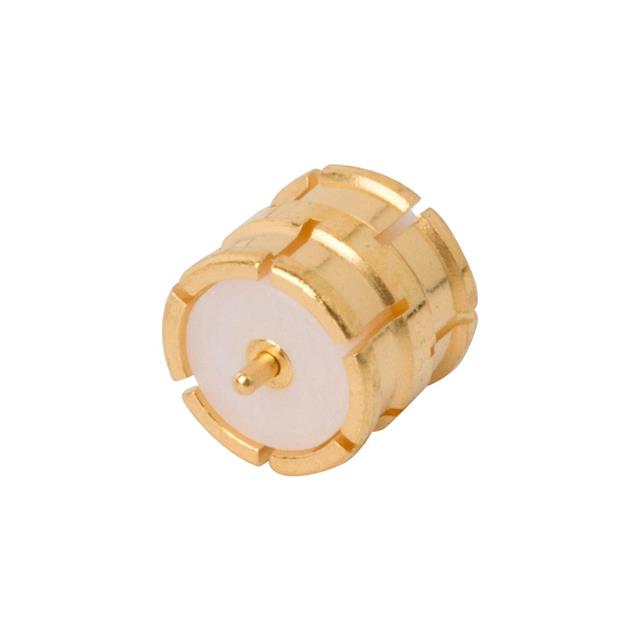

Specification	1180-4009

Adapter Series Size	3 mm
Adapter Type	Plug to Plug
Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male
Conversion Type	Same Series
Convert From (Adapter End) Plug Size	3 mm
Convert From (Adapter End) Type	Male Pin
Convert To (Adapter End)	Plug, Male Pin
Convert To (Adapter End) Precision	3 mm
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Impedance	50 Ohm
Mounting Type	Free Hanging (In-Line)
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Style	Straight

1180-40 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Body Material	Center Contact Material	Body Finish	Style	Fastening Type	Center Contact Plating	Impedance	Convert From (Adapter End) Type	Convert From (Adapter End) Plug Size	Center Gender	Adapter Series Size	Adapter Type	Convert To (Adapter End)	Convert To (Adapter End) Precision	Mounting Type	Conversion Type
McGill Microwave Systems 1180-4009	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Brass	Gold	Straight	Snap-On	Gold	50 Ohm	Male Pin	3 mm	Male	3 mm	Plug to Plug	Male Pin Plug	3 mm	Free Hanging (In-Line)	Same Series
