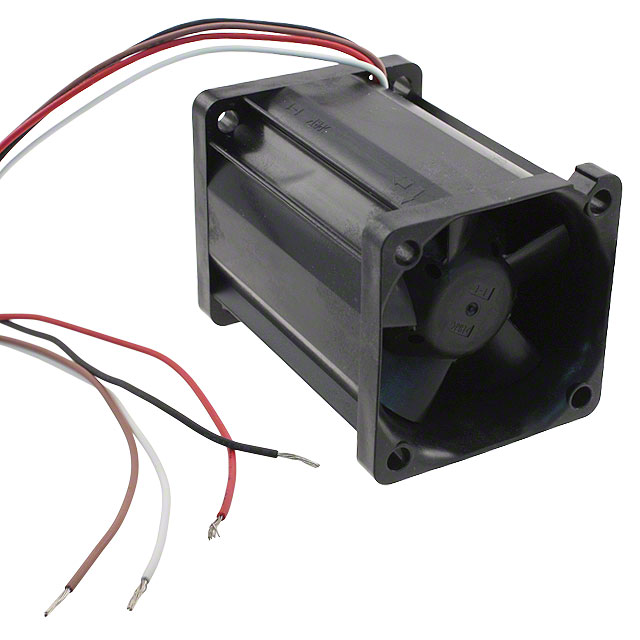

Specification	1622FT-04W-B86-E50

Air Flow	30 CFM
Approval Agency	CE, VDE, UL
Bearing Type	Ball
Current Rating	1.05 A
Fan Type	Tubeaxial
Features	PWM Control, Speed Sensor (Tach)
Lifetime	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	60 dB
Operating Temperature (Max)	140 °F
Operating Temperature (Min)	14 °F
Power (Watts)	12.6 W
RPM	23000 RPM
Size / Dimension Height	40 mm
Size / Dimension Length	40 mm
Size / Dimension Shape	Square
Static Pressure	3.54 in H2O
Termination	4 Wire Leads
Termination Leads Count	4 leads
Termination Type	Wire Leads
Voltage - Rated	12 VAC
Voltage Range (Max)	13.2 VDC
Voltage Range (Min)	10.2 VDC
Weight	0.15 lbs
Width	56 mm

1622FT Series

Part	Weight	Static Pressure	Features	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Width	Bearing Type	RPM	Operating Temperature (Max)	Operating Temperature (Min)	Termination Leads Count	Termination Type	Termination	Noise	Approval Agency	Fan Type	Air Flow	Power (Watts)	Voltage - Rated	Material - Blade	Lifetime	Current Rating	Voltage Range (Max)	Voltage Range (Min)	Material - Frame
NMB TECHNOLOGIES 1622FT-04W-B86-E50	0.15 lbs	3.54 in H2O	PWM Control Speed Sensor (Tach)	40 mm	Square	40 mm	56 mm	Ball	23000 RPM	140 °F	14 °F	4 leads	Wire Leads	4 Wire Leads	60 dB	CE UL VDE	Tubeaxial	30 CFM	12.6 W	12 VAC	Plastic	70000 Hrs	1.05 A	13.2 VDC	10.2 VDC	Plastic
NMB TECHNOLOGIES 1622FT-04W-B86-E00	0.15 lbs	3.54 in H2O	PWM Control Speed Sensor (Tach)	40 mm	Square	40 mm	56 mm	Ball	23000 RPM	140 °F	14 °F	4 leads	Wire Leads	4 Wire Leads	60 dB	CE UL VDE	Tubeaxial	30 CFM	12.6 W	12 VAC	Plastic	70000 Hrs	1.05 A	13.2 VDC	10.2 VDC	Plastic
