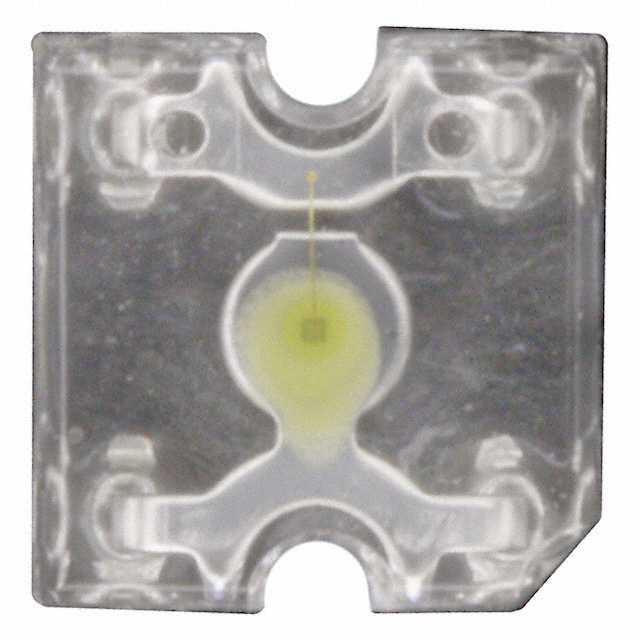

LP368PWN1-D0G
ObsoleteCreeLED, Inc.
LED COOL WHITE CLEAR P4 T/H
LP368PWN1-D0G
ObsoleteCreeLED, Inc.
LED COOL WHITE CLEAR P4 T/H
Description
General part information
LP368P Series
White, Cool LED Indication - Discrete 3.6V 4-DIP (0.200", 5.08mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LP368PWN1-D0G |
|---|---|
| Color | Cool, White |
| Configuration | Standard |
| Current - Test | 30 mA |
| Height (Max) | 4.85 mm |
| Lens Color | Colorless |
| Lens Size | 7.6 mm |
| Lens Style | Flat Top, Square |
| Lens Transparency | Clear |
| Millicandela Rating | 400 mcd |
| Mounting Type | Through Hole |
| Package Length | 5.08 mm |
| Package Name | P4, 4-DIP |
| Package Width | 5.08 mm |
| Size / Dimension Length | 7.6 mm |
| Size / Dimension Width | 7.6 mm |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 3.6 V |
