R110A426000

Active

Radiall USA, Inc.

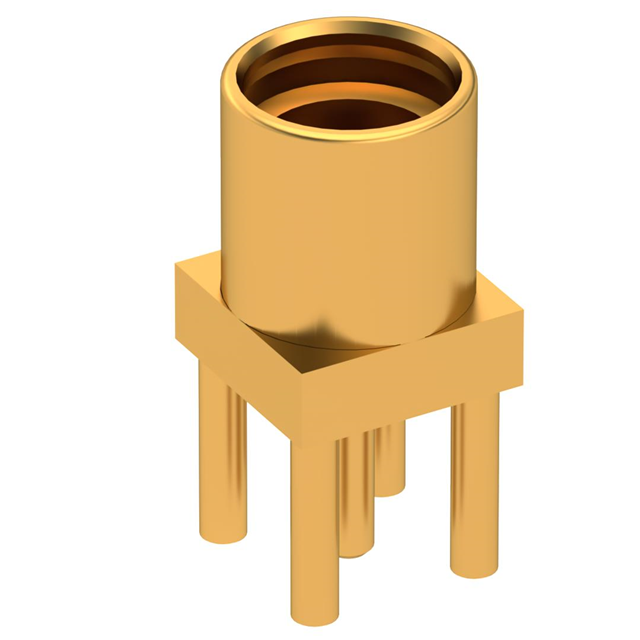

MMCX / STRAIGHT JACK RECEPTACLE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

MMCX / STRAIGHT JACK RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	R110A426000

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	3 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	170 V

Part	Dielectric Material	Fastening Type	Center Contact Material	Contact Termination	Body Finish	Body Material	Mounting Type	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Shield Termination	Number of Ports	Voltage Rating	Connector Style	Frequency - Max [Max]	Housing Color	Connector Type
Radiall USA, Inc. R110A422830	Polytetrafluoroethylene (PTFE)	Snap-On	Beryllium Copper	Solder	Gold	Brass	Board Edge Cutout Surface Mount	Gold	85 °C	-40 °C	50 Ohms	Solder	1	250 VDC	MMCX	3 GHz	Gold	Female Socket Jack
Radiall USA, Inc. R110A426000	Polytetrafluoroethylene (PTFE)	Snap-On	Beryllium Copper	Solder	Gold	Brass	Through Hole	Gold	85 °C	-40 °C	50 Ohms	Solder	1	170 V	MMCX	3 GHz	Gold	Female Socket Jack
Radiall USA, Inc. R110A427830	Polytetrafluoroethylene (PTFE)	Snap-On	Beryllium Copper	Solder	Gold	Brass	Surface Mount	Gold	85 °C	-40 °C	50 Ohms	Solder	1	250 VDC	MMCX	3 GHz	Gold	Female Socket Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 3.28

General part information

MMCX Connector Jack, Female Socket 50 Ohms Through Hole Solder
