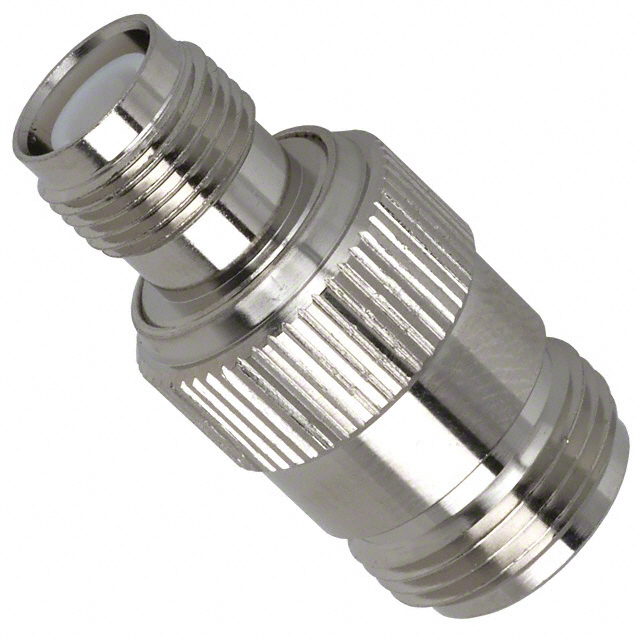

Specification	242132RP

Adapter Series	RP-TNC to N
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Center Gender	Male, Female
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End) Gender	Male Pin
Convert To (Adapter End) Type	RP-TNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	11 GHz
Impedance	50 Ohm
Mounting Type	Free Hanging (In-Line)
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Style	Straight

242132 Series

Part	Dielectric Material	Body Finish	Operating Temperature (Min)	Operating Temperature (Max)	Body Material	Center Contact Material	Center Gender	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Adapter Type	Conversion Type	Style	Mounting Type	Convert From (Adapter End)	Impedance	Center Contact Plating	Fastening Type	Frequency - Max	Adapter Series
McGill Microwave Systems 242132RP	Polytetrafluoroethylene (PTFE)	Nickel	-65 °C	165 °C	Brass	Phosphor Bronze	Female Male	RP-TNC Jack	Male Pin	Jack to Jack	Between Series	Straight	Free Hanging (In-Line)	Female Socket N Jack	50 Ohm	Gold	Threaded	11 GHz	RP-TNC to N
