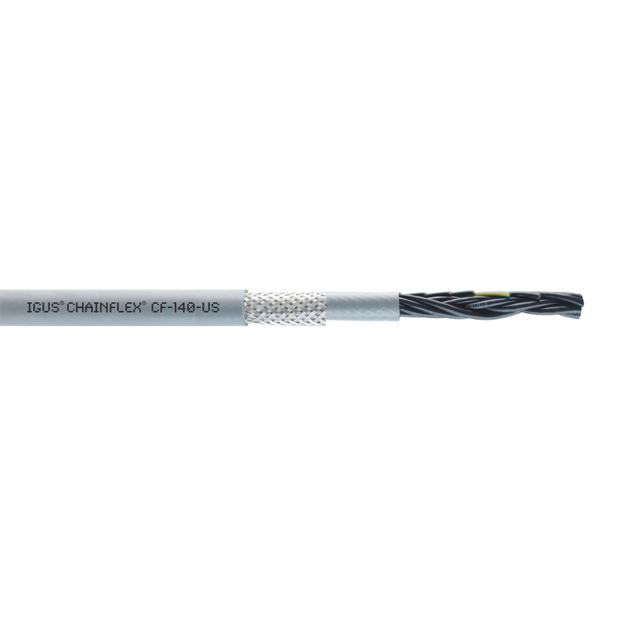

CF140US-15-25

Active

Igus

CABLE 25CON 16AWG GRAY SHLD FEET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CF140US-15-25

Active

Igus

CABLE 25CON 16AWG GRAY SHLD FEET

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CF140US-15-25

Cable Type	Multi-Conductor
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	34 AWG
Conductor Strand [custom]	65
Features	Oil Resistant, UV Resistant, Flame Retardant
Jacket (Insulation) Diameter [diameter]	21.59 mm
Jacket (Insulation) Diameter [diameter]	0.85 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Number of Conductors	25
Shield Coverage	85 %
Shield Material	Copper, Tinned
Shield Type	Braid
Voltage	600 V
Wire Gauge	16 AWG

CF140 Series

Part	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Conductor Material	Length	Number of Conductors	Features	Shield Material	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Shield Type	Spool Size	Spool Size	Jacket Color	Jacket (Insulation) Material	Conductor Insulation	Cable Type	Conductor Strand	Usage	Ratings	Conductor Strand [custom]	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter
Igus CF140US-07-04	41 strands	34 AWG	600 V	Copper Bare	Enter Number of Feet in Order Quantity	4	Flame Retardant Oil Resistant UV Resistant	Copper Tinned	85 %	0.4 "	10.16 mm	18 AWG	Braid	1000 ft	304.8 m	Gray	Poly-Vinyl Chloride (PVC)	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	Multi-Conductor
Igus CF140US-05-18			600 V	Copper Bare	Enter Number of Feet in Order Quantity	18	Flame Retardant Oil Resistant UV Resistant	Copper Tinned	85 %	0.63 in	16 mm	20 AWG	Braid	1000 ft	304.8 m	Gray	Poly-Vinyl Chloride (PVC)	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	Multi-Conductor	26 34 AWG
Igus CF140-15-25-UL			300 V	Copper Bare	Enter Number of Feet in Order Quantity	25	Flame Retardant Rip Cord	Copper Tinned	80 %	0.886 in	22.5 mm	16 AWG	Braid			Gray	Poly-Vinyl Chloride (PVC)	Thermoplastic Elastomer (TPE)	Multi-Conductor		Industrial Control	UL Style 20200
Igus CF140-10-04-UL			300 V	Copper Bare	Enter Number of Feet in Order Quantity	4	Flame Retardant Rip Cord	Copper Tinned	80 %	0.354 in	8.99 mm	17 AWG	Braid			Gray	Poly-Vinyl Chloride (PVC)	Thermoplastic Elastomer (TPE)	Multi-Conductor		Industrial Control	UL Style 20200
Igus CF140-07-25			300 V	Copper Bare	Enter Number of Feet in Order Quantity	25	Flame Retardant Rip Cord	Copper Tinned	80 %	0.709 "	18.01 mm	18 AWG	Braid	1000 ft	304.8 m	Gray	Poly-Vinyl Chloride (PVC)	Thermoplastic Elastomer (TPE)	Multi-Conductor		Industrial Control	UL Style 20200
Igus CF140US-15-25	65	34 AWG	600 V	Copper Bare	Enter Number of Feet in Order Quantity	25	Flame Retardant Oil Resistant UV Resistant	Copper Tinned	85 %	0.85 "	21.59 mm	16 AWG	Braid			Gray	Poly-Vinyl Chloride (PVC)	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	Multi-Conductor
Igus CF140-10-05-UL			300 V	Copper Bare	Enter Number of Feet in Order Quantity	5	Flame Retardant Rip Cord	Copper Tinned	80 %	0.374 in	9.5 mm	17 AWG	Braid			Gray	Poly-Vinyl Chloride (PVC)	Thermoplastic Elastomer (TPE)	Multi-Conductor		Industrial Control	UL Style 20200
Igus CF140US-60-04		34 AWG	600 V	Copper Bare	Enter Number of Feet in Order Quantity	4	Flame Retardant Oil Resistant UV Resistant	Copper Tinned	85 %	0.64 "	16.26 mm	10 AWG	Braid			Gray	Poly-Vinyl Chloride (PVC)	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	Multi-Conductor				259
Igus CF140US-07-25	41 strands	34 AWG	600 V	Copper Bare	Enter Number of Feet in Order Quantity	25	Flame Retardant Oil Resistant UV Resistant	Copper Tinned	85 %			18 AWG	Braid	1000 ft	304.8 m	Gray	Poly-Vinyl Chloride (PVC)	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	Multi-Conductor					19.81 mm	0.78 "
Igus CF140-15-03			300 V	Copper Bare	Enter Number of Feet in Order Quantity	3	Flame Retardant Rip Cord	Copper Tinned	80 %	0.35 in	8.89 mm	16 AWG	Braid	1000 ft	304.8 m	Gray	Poly-Vinyl Chloride (PVC)	Thermoplastic Elastomer (TPE)	Multi-Conductor		Industrial Control	UL Style 20200

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.01
		500	$ 19.22
		1000	$ 18.46

Description

General part information

CF140 Series

25 Conductor Multi-Conductor Cable Gray 16 AWG Braid Enter Number of Feet in Order Quantity
