GFB1224SHG-F00

Obsolete

Delta Electronics

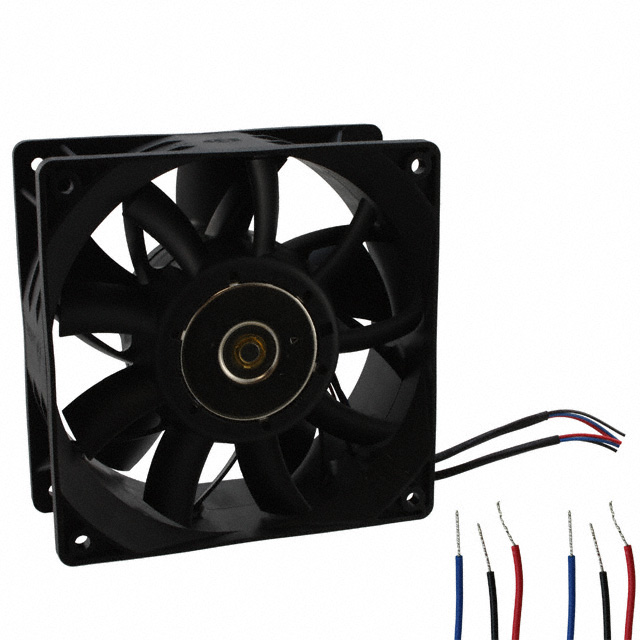

FAN AXIAL DUAL 120X50.8MM 24VDC

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL DUAL 120X50.8MM 24VDC

Technical Specifications

Parameters and characteristics for this part

Specification	GFB1224SHG-F00

Air Flow	203.9 CFM
Air Flow	5.71 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	1.46 A
Fan Type	Tubeaxial (Dual)
Features	Speed Sensor (Tach), Locked Rotor Protection
Material - Blade	Plastic
Material - Frame	Plastic
Noise	67.6 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	35.04 W
RPM [custom]	3400 RPM
RPM [custom]	3700 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	204.3 Pa
Static Pressure	0.82 in H2O
Termination	3 Wire Leads per Fan
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	14 VDC
Weight	589.7 g
Weight	1.3 lbs
Width [y]	2 "

Part	Approval Agency	Power (Watts)	Static Pressure	Static Pressure	Material - Blade	Width [y]	Current Rating (Amps)	Termination	Noise	Features	Weight	Weight	Bearing Type	RPM [custom]	RPM [custom]	Voltage - Rated	Fan Type	Air Flow	Air Flow	Material - Frame	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Voltage Range [Max]	Voltage Range [Min]
Delta Electronics GFB1224SHG-F00	CE CSA UL VDE	35.04 W	204.3 Pa	0.82 in H2O	Plastic	2 "	1.46 A	3 Wire Leads per Fan	67.6 dB(A)	Locked Rotor Protection Speed Sensor (Tach)	589.7 g	1.3 lbs	Ball	3400 RPM	3700 RPM	24 VDC	Tubeaxial (Dual)	203.9 CFM	5.71 m³/min	Plastic	-10 °C	-10 °C	60 °C	60 °C	120 mm	120 mm	26.4 VDC	14 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial (Dual) 24VDC Square - 120mm L x 120mm H Ball 203.9 CFM (5.71m³/min) 3 Wire Leads per Fan
