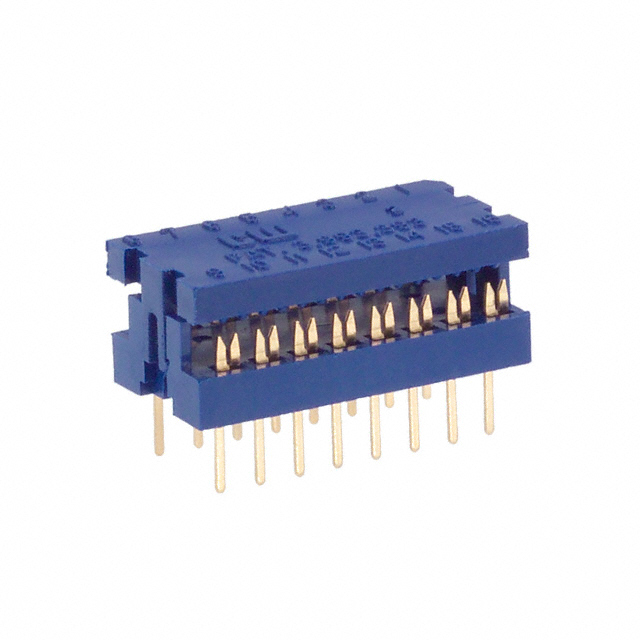

CWR-130-16-0000

Active

CW Industries

CONN DIP HDR IDC 16POS VERT

Search across all available documentation for this part.

Active

CW Industries

CONN DIP HDR IDC 16POS VERT

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Connector Type	Number of Positions Loaded	Number of Positions	Board-Side Pitch	Board-Side Pitch	Features	Contact Finish Thickness	Contact Finish Thickness	Color	Mounting Type	Cable Pitch	Cable Pitch	Cable Termination	Row Spacing	Row Spacing	Number of Rows	Wire Gauge [Min]	Wire Gauge	Wire Gauge [Max]	Number of Positions
CW Industries CWR-130-14-0000	Gold	DIP Header Ribbon Cable	All	14	0.1 in	2.54 mm	Feed Through	10 Áin	0.25 Ám	Blue	Through Hole	1.27 mm	0.05 in	IDC	0.3 in	7.62 mm	2	27.5 AWG	Stranded or Solid	30 AWG
CW Industries CWR-130-16-0000	Gold	DIP Header Ribbon Cable	All		0.1 in	2.54 mm	Feed Through	10 Áin	0.25 Ám	Blue	Through Hole	1.27 mm	0.05 in	IDC	0.3 in	7.62 mm	2	27.5 AWG	Stranded or Solid	30 AWG	16
CW Industries CWR-130-14-0001	Gold	DIP Header Ribbon Cable	All	14	0.1 in	2.54 mm	Feed Through	30 Áin	0.76 Ám	Blue	Through Hole	1.27 mm	0.05 in	IDC	0.3 in	7.62 mm	2	27.5 AWG	Stranded or Solid	30 AWG
CW Industries CWR-130-16-0203	Tin	DIP Header Ribbon Cable	All		0.1 in	2.54 mm	Feed Through			Blue	Through Hole	1.27 mm	0.05 in	IDC	0.3 in	7.62 mm	2	27.5 AWG	Stranded or Solid	30 AWG	16
CW Industries CWR-130-16-0001	Gold	DIP Header Ribbon Cable	All		0.1 in	2.54 mm	Feed Through	30 Áin	0.76 Ám	Blue	Through Hole	1.27 mm	0.05 in	IDC	0.3 in	7.62 mm	2	27.5 AWG	Stranded or Solid	30 AWG	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Ribbon Cable, DIP Header Connector Blue IDC 28-30 AWG, Stranded or Solid Through Hole
