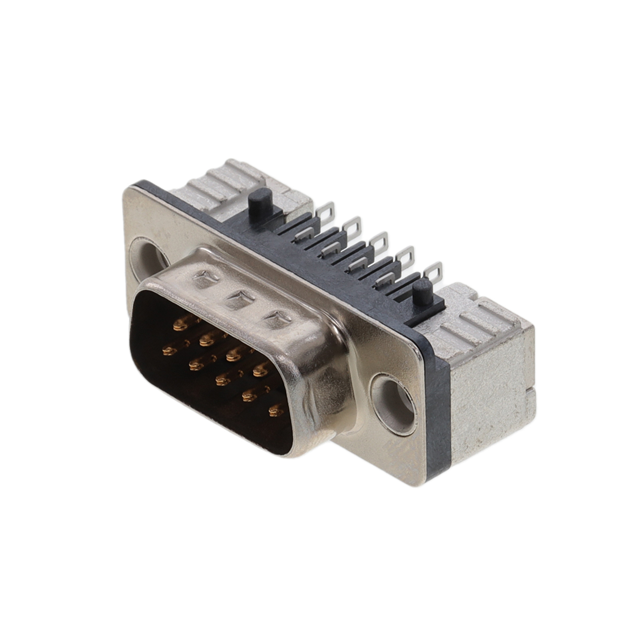

XM3K-0912-02N

Active

Omron Electronics Inc-EMC Div

CONN D-SUB PLUG 9P SMD R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XM3K-0912-02N

Active

Omron Electronics Inc-EMC Div

CONN D-SUB PLUG 9P SMD R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 8.30
		10	$ 7.47
		25	$ 7.04
		50	$ 6.86
	Digi-Reel®	1	$ 8.30
		10	$ 7.47
		25	$ 7.04
		50	$ 6.86
	Tape & Reel (TR)	160	$ 5.68
		320	$ 5.29
		480	$ 5.09
		800	$ 4.84
		1120	$ 4.69
		1600	$ 4.53

Description

General part information

XM3K Series

9 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XM3K-0912-02N	XM3K Series

Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Signal	Signal
Current Rating (Amps)	3 A	3 A
Dielectric Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Features	Grounding Indents, Board Guide, Shielded	Grounding Indents, Board Guide, Shielded
Flange Feature	Housing/Shell (M3)	Female Screwlock (4-40), Mating Side, Housing/Shell (M3), Female Screwlock (M3)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Positions	9	9
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E	DE, E, DB, B
Shell Size, Connector Layout [custom]	1	1 - 3
Termination	Solder	Solder
Voltage Rating	300 VAC	300 VAC

XM3K Series

CONN D-SUB PLUG 9P SMD R/A SLDR

Part	Material Flammability Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Material	Termination	Color	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Shell Material, Finish	Connector Type	Current Rating (Amps)	Connector Style	Mounting Type	Number of Positions	Number of Rows	Contact Type	Dielectric Material	Features	Contact Finish	Flange Feature
Omron Electronics Inc-EMC Div XM3K-0912-13N	UL94 V-0	DE, E	1	Copper Alloy	Solder	Black	105 ░C	-55 °C	300 VAC	Nickel Plated, Steel	Male Pins, Plug	3 A	D-Sub	Surface Mount, Right Angle	9	2	Signal	Liquid Crystal Polymer (LCP)	Board Guide, Grounding Indents, Shielded	Gold	Female Screwlock (4-40), Mating Side
Omron Electronics Inc-EMC Div XM3K-2512-02N	UL94 V-0	B, DB	3	Copper Alloy	Solder	Black	105 ░C	-55 °C	300 VAC	Nickel Plated, Steel	Male Pins, Plug	3 A	D-Sub	Surface Mount, Right Angle		2	Signal	Liquid Crystal Polymer (LCP)	Board Guide, Grounding Indents, Shielded	Gold	Housing/Shell (M3)
Omron Electronics Inc-EMC Div XM3K-2512-12N	UL94 V-0	B, DB	3	Copper Alloy	Solder	Black	105 ░C	-55 °C	300 VAC	Nickel Plated, Steel	Male Pins, Plug	3 A	D-Sub	Surface Mount, Right Angle		2	Signal	Liquid Crystal Polymer (LCP)	Board Guide, Grounding Indents, Shielded	Gold	Female Screwlock (M3), Mating Side
Omron Electronics Inc-EMC Div XM3K-2512-13N	UL94 V-0	B, DB	3	Copper Alloy	Solder	Black	105 ░C	-55 °C	300 VAC	Nickel Plated, Steel	Male Pins, Plug	3 A	D-Sub	Surface Mount, Right Angle		2	Signal	Liquid Crystal Polymer (LCP)	Board Guide, Grounding Indents, Shielded	Gold	Female Screwlock (4-40), Mating Side
Omron Electronics Inc-EMC Div XM3K-0912-02N	UL94 V-0	DE, E	1	Copper Alloy	Solder	Black	105 ░C	-55 °C	300 VAC	Nickel Plated, Steel	Male Pins, Plug	3 A	D-Sub	Surface Mount, Right Angle	9	2	Signal	Liquid Crystal Polymer (LCP)	Board Guide, Grounding Indents, Shielded	Gold	Housing/Shell (M3)
Omron Electronics Inc-EMC Div XM3K-0912-12N	UL94 V-0	DE, E	1	Copper Alloy	Solder	Black	105 ░C	-55 °C	300 VAC	Nickel Plated, Steel	Male Pins, Plug	3 A	D-Sub	Surface Mount, Right Angle	9	2	Signal	Liquid Crystal Polymer (LCP)	Board Guide, Grounding Indents, Shielded	Gold	Female Screwlock (M3), Mating Side
