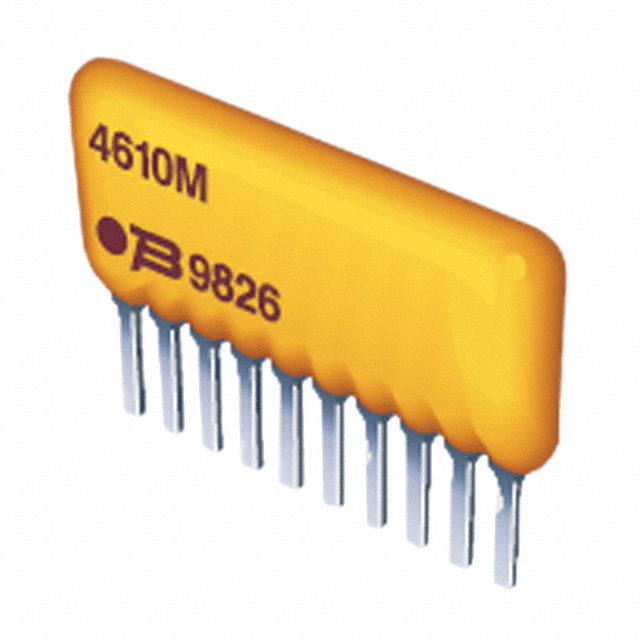

4610M-102-101LF

Active

Bourns Inc.

RES ARRAY 5 RES 100 OHM 10SIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4610M-102-101LF

Active

Bourns Inc.

RES ARRAY 5 RES 100 OHM 10SIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4610M-102-101LF

Circuit Type	Isolated
Height - Seated (Max)	6.35 mm
Height - Seated (Max) [Max]	0.25 in
Mounting Type	Through Hole
Number of Pins	10
Number of Resistors	5
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	10-SIP
Resistance (Ohms)	100 Ohms
Resistor-Ratio-Drift	50 ppm/°C
Size / Dimension [x]	0.998 "
Size / Dimension [x]	25.35 mm
Size / Dimension [y]	2.49 mm
Size / Dimension [y]	0.098 in
Supplier Device Package	10-SIP
Temperature Coefficient	100 ppm/°C
Tolerance	2 %

4610M Series

Part	Voltage - Rated	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Circuit Type	Mounting Type	Tolerance	Number of Capacitors	Temperature Coefficient	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Supplier Device Package	Number of Resistors	Power Per Element	Operating Temperature [Min]	Operating Temperature [Max]	Number of Pins	Height - Seated (Max)	Height - Seated (Max) [Max]	Temperature Coefficient	Resistance (Ohms)	Resistor-Ratio-Drift	Resistance (Ohms)
Bourns Inc. 4610M-901-102	50 VDC	0.998 "	0.15 "	3.81 mm	25.35 mm	10-SIP	Bussed	Through Hole	20 %	9	X7R	5.08 mm	0.2 "	0.001 µF
Bourns Inc. 4610M-101-272LF		0.998 "	0.098 in	2.49 mm	25.35 mm	10-SIP	Bussed	Through Hole	2 %						10-SIP	9	250 mW	-55 °C	125 °C	10	6.35 mm	0.25 in	100 ppm/°C	2.7 kOhms	50 ppm/°C
Bourns Inc. 4610M-101-333LF		0.998 "	0.098 in	2.49 mm	25.35 mm	10-SIP	Bussed	Through Hole	2 %						10-SIP	9	250 mW	-55 °C	125 °C	10	6.35 mm	0.25 in	100 ppm/°C		50 ppm/°C	33k
Bourns Inc. 4610M-901-104LF	50 VDC	0.998 "	0.15 "	3.81 mm	25.35 mm	10-SIP	Bussed	Through Hole	20 %	9	X7R	5.08 mm	0.2 "	100000 pF
Bourns Inc. 4610M-102-101LF		0.998 "	0.098 in	2.49 mm	25.35 mm	10-SIP	Isolated	Through Hole	2 %						10-SIP	5		-55 °C	125 °C	10	6.35 mm	0.25 in	100 ppm/°C	100 Ohms	50 ppm/°C
Bourns Inc. 4610M-101-332LF		0.998 "	0.098 in	2.49 mm	25.35 mm	10-SIP	Bussed	Through Hole	2 %						10-SIP	9	250 mW	-55 °C	125 °C	10	6.35 mm	0.25 in	100 ppm/°C	3.3 kOhms	50 ppm/°C
Bourns Inc. 4610M-101-103LF		0.998 "	0.098 in	2.49 mm	25.35 mm	10-SIP	Bussed	Through Hole	2 %						10-SIP	9	250 mW	-55 °C	125 °C	10	6.35 mm	0.25 in	100 ppm/°C		50 ppm/°C	10k
Bourns Inc. 4610M-104-151/121L		0.998 "	0.098 in	2.49 mm	25.35 mm	10-SIP	Dual Terminator	Through Hole	2 %						10-SIP	16	250 mW	-55 °C	125 °C	10	6.35 mm	0.25 in	100 ppm/°C	120 Ohms 150 Ohms	50 ppm/°C
Bourns Inc. 4610M-802-500/103		0.998 "	0.098 in	2.49 mm	25.35 mm	10-SIP	Dual Terminator	Through Hole	2 % 2 Ohm						10-SIP	16	250 mW	-55 °C	125 °C	10	6.35 mm	0.25 in	100 ppm/°C	50 Ohms	50 ppm/°C	10k
Bourns Inc. 4610M-104-253/503L		0.998 "	0.098 in	2.49 mm	25.35 mm	10-SIP	Dual Terminator	Through Hole	2 %						10-SIP	16	250 mW	-55 °C	125 °C	10	6.35 mm	0.25 in	100 ppm/°C		50 ppm/°C	25k 50k

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10000	$ 0.19

Description

General part information

4610M Series

100 Ohm ±2% 400mW Power Per Element Isolated 5 Resistor Network/Array ±100ppm/°C 10-SIP
