W7A81-8SG-300

Active

Conxall/Switchcraft

CONN RCPT FMALE 8POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 8POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	W7A81-8SG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	UV Resistant
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions [custom]	8
Number of Positions [custom]	6
Number of Positions [custom]	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Solder
Voltage Rating	250 VDC

CONN RCPT FMALE 8POS GOLD SOLDER

Part	Current Rating (Amps)	Orientation	Backshell Material, Plating	Features	Applications	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Contact Material	Mounting Feature	Connector Type	Primary Material	Color	Fastening Type	Contact Finish - Mating	Mounting Type	Termination	Voltage Rating	Insert Material	Ingress Protection	Shielding	Operating Temperature [Max]	Operating Temperature [Min]
Conxall/Switchcraft W7A81-8SG-300	Varies by Wire Gauge	Keyed	Thermoplastic	UV Resistant	Automotive, Communication Systems, Instrumentation	8	6	2	Copper Alloy	Bulkhead - Front Side Nut	Receptacle, Female Sockets	Plastic	Black	Bayonet Lock	Gold	Panel Mount, Through Hole	Solder	250 VDC	Thermoplastic	IP67, IP69K	Unshielded	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

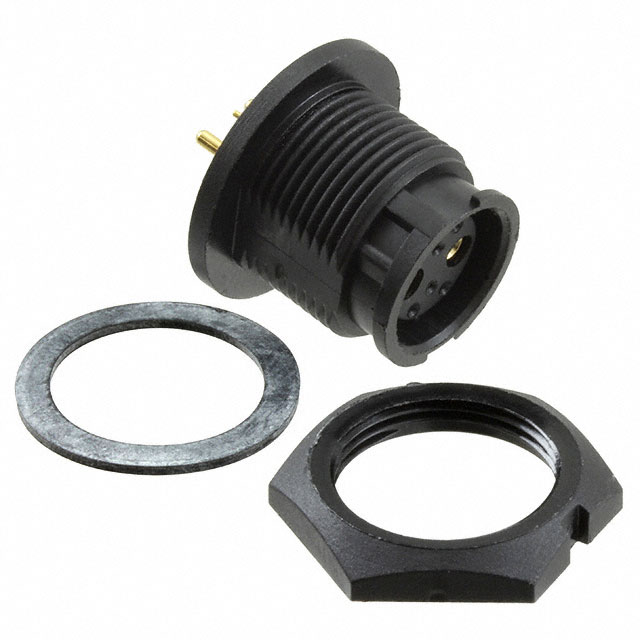

8 (6 + 2 Power) Position Circular Connector Receptacle, Female Sockets Solder
