837-064-560-803

Active

EDAC Inc.

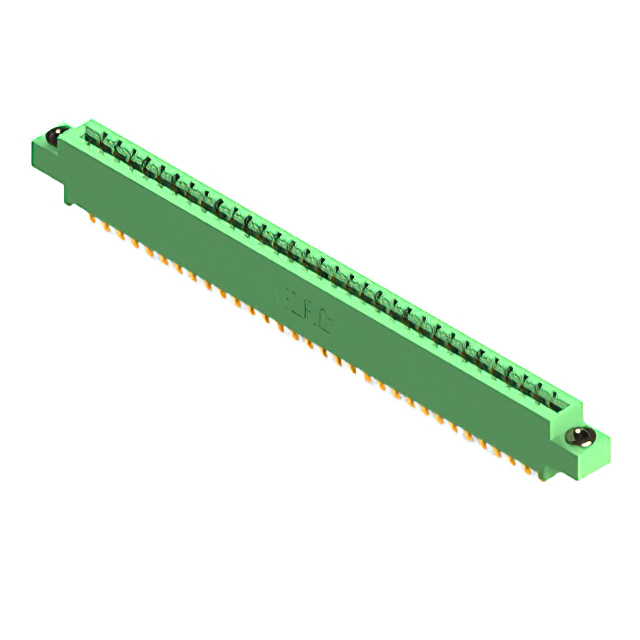

3.96MM 64P -40℃~+125℃ P=3.96MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

837-064-560-803

Active

EDAC Inc.

3.96MM 64P -40℃~+125℃ P=3.96MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	837-064-560-803

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Top Mount Opening, Floating Bobbin
Flange Feature [diameter]	2.95 mm
Flange Feature [diameter]	0.116 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	64
Number of Positions/Bay/Row [custom]	32
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

837-064 Series

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Read Out	Number of Positions	Termination	Contact Type	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Color	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Card Type	Contact Material	Termination Rows	Number of Positions/Bay/Row [custom]	Contact Finish	Gender	Mounting Type	Features	Flange Feature	Flange Feature
EDAC Inc. 837-064-523-202	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Dual	64	Solder	Cantilever	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Green	2	0.156 in	3.96 mm	10 Áin	0.25 Ám	Non Specified - Dual Edge	Copper Alloy	2	32	Gold	Female	Through Hole
EDAC Inc. 837-064-560-803	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Dual	64	Solder	Cantilever	2.95 mm	0.116 in	Floating Bobbin Top Mount Opening	Green	2	0.156 in	3.96 mm	10 Áin	0.25 Ám	Non Specified - Dual Edge	Copper Alloy	2	32	Gold	Female	Board Edge Straddle Mount	Card Extender
EDAC Inc. 837-064-520-808	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Dual	64	Solder	Cantilever			4-40 Threaded Insert Top Mount Opening	Green	2	0.156 in	3.96 mm	10 Áin	0.25 Ám	Non Specified - Dual Edge	Copper Alloy	2	32	Gold	Female	Through Hole
EDAC Inc. 837-064-524-208	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Dual	64	Solder	Cantilever			4-40 Flush Mount Threaded Insert Top Opening	Green	2	0.156 in	3.96 mm	10 Áin	0.25 Ám	Non Specified - Dual Edge	Copper Alloy	2	32	Gold	Female	Through Hole
EDAC Inc. 837-064-521-212	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Dual	64	Solder	Cantilever	3.25 mm	0.128 "	Flush Mount Side Opening Unthreaded	Green	2	0.156 in	3.96 mm	10 Áin	0.25 Ám	Non Specified - Dual Edge	Copper Alloy	2	32	Gold	Female	Through Hole
EDAC Inc. 837-064-541-201	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Dual	64	Wire Wrap	Cantilever				Green	2	0.156 in	3.96 mm	10 Áin	0.25 Ám	Non Specified - Dual Edge	Copper Alloy	2	32	Gold	Female	Through Hole
EDAC Inc. 837-064-520-212	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Dual	64	Solder	Cantilever	3.25 mm	0.128 "	Flush Mount Side Opening Unthreaded	Green	2	0.156 in	3.96 mm	10 Áin	0.25 Ám	Non Specified - Dual Edge	Copper Alloy	2	32	Gold	Female	Through Hole
EDAC Inc. 837-064-544-204	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Dual	64	Wire Wrap	Cantilever	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	Green	2	0.156 in	3.96 mm	10 Áin	0.25 Ám	Non Specified - Dual Edge	Copper Alloy	2	32	Gold	Female	Through Hole
EDAC Inc. 837-064-521-812	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Dual	64	Solder	Cantilever			Side Mount Opening Unthreaded	Green	2	0.156 in	3.96 mm	10 Áin	0.25 Ám	Non Specified - Dual Edge	Copper Alloy	2	32	Gold	Female	Through Hole		3.25 mm	0.128 in
EDAC Inc. 837-064-556-802	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Dual	64	Solder	Cantilever				Green	2	0.156 in	3.96 mm	10 Áin	0.25 Ám	Non Specified - Dual Edge	Copper Alloy	2	32	Gold	Female	Board Edge Straddle Mount	Card Extender	3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 116.24
LCSC	Piece	1	$ 50.34
		200	$ 19.48
		500	$ 18.80
		1000	$ 18.46
Newark	Each	1	$ 134.18
		100	$ 94.23
		250	$ 70.91
		500	$ 57.27
		1000	$ 49.13

Description

General part information

837-064 Series

64 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
