6307FE 877500

Active

Belden Inc.

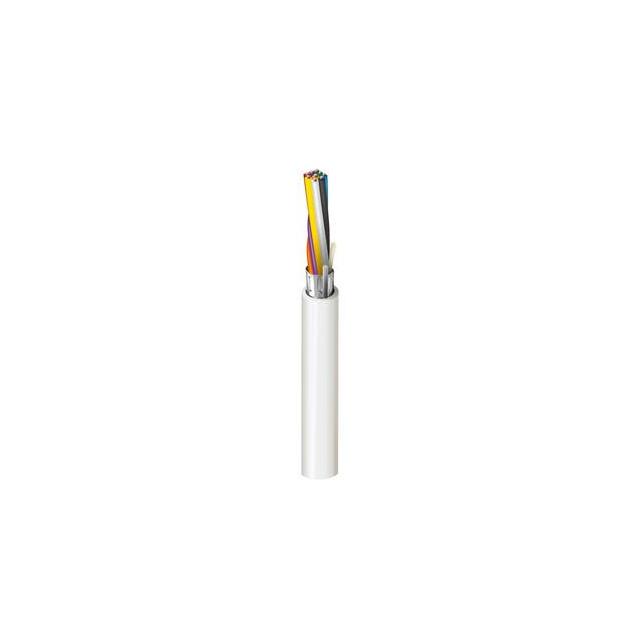

CABLE 9COND 18AWG NAT SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 9COND 18AWG NAT SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	6307FE 877500

Cable Type	Multi-Conductor
Conductor Insulation	Low Smoke Poly-Vinyl Chloride (LSPVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Material	Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Natural
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	9
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Ratings	UL Style CMP
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Sound, Security
Voltage	300 V
Wire Gauge	18 AWG

Part	Conductor Insulation	Conductor Material	Wire Gauge	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Shield Coverage	Jacket (Insulation) Material	Cable Type	Ratings	Shield Material	Operating Temperature [Max]	Operating Temperature [Min]	Shield Type	Usage	Features	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Length [x]	Length [x]
Belden Inc. 6307FE 877500	Low Smoke Poly-Vinyl Chloride (LSPVC)	Copper Bare	18 AWG	300 V	0.015 in	0.381 mm	Natural	100 %	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	Multi-Conductor	UL Style CMP	Aluminum	75 ░C	0 °C	Foil	Security Sound	Drain Wire Rip Cord	26 AWG	7	9	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 0.92

General part information

9 Conductor Multi-Conductor Cable Natural 18 AWG Foil 500.0' (152.4m)
