123-47-314-41-001000

Active

Mill-Max Manufacturing Corp.

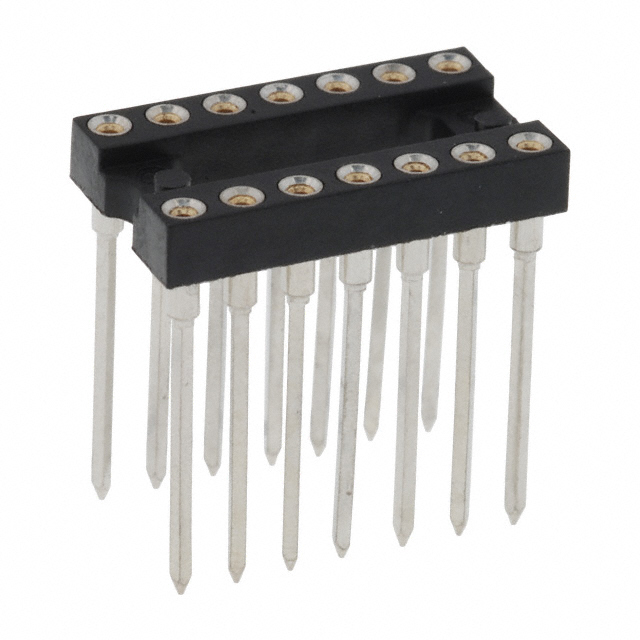

CONN IC DIP SOCKET 14POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

123-47-314-41-001000

Active

Mill-Max Manufacturing Corp.

CONN IC DIP SOCKET 14POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	123-47-314-41-001000

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Current Rating (Amps)	3 A
Features	Open Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	14
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	0.3 "
Type	7.62 mm
Type	DIP

123-47 Series

Part	Termination	Contact Resistance	Housing Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Mating	Termination Post Length [x]	Termination Post Length [x]	Contact Finish - Post	Material Flammability Rating	Pitch - Post	Pitch - Post	Features	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish - Mating	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Number of Positions or Pins (Grid)	Type	Type	Type	Contact Finish Thickness - Mating	Contact Material - Post	Termination Post Length	Termination Post Length	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 123-47-318-41-001000	Wire Wrap	10 mOhm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Beryllium Copper	0.51 in	12.95 mm	Tin	UL94 V-0	2.54 mm	0.1 in	Open Frame	-55 °C	125 °C	Through Hole	Gold	3 A	0.1 in	2.54 mm	18	0.3 "	7.62 mm	DIP	Flash	Brass Alloy
Mill-Max Manufacturing Corp. 123-47-316-41-001000	Solder		Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Beryllium Copper			Tin		2.54 mm	0.1 in	Open Frame	-55 °C	125 °C	Through Hole	Gold	3 A	0.1 in	2.54 mm	16	0.3 "	7.62 mm	DIP	Flash	Brass Alloy	3.18 mm	0.125 in
Mill-Max Manufacturing Corp. 123-47-314-41-001000	Solder		Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Beryllium Copper			Tin		2.54 mm	0.1 in	Open Frame	-55 °C	125 °C	Through Hole	Gold	3 A	0.1 in	2.54 mm	14	0.3 "	7.62 mm	DIP	Flash	Brass Alloy	3.18 mm	0.125 in
Mill-Max Manufacturing Corp. 123-47-636-41-001000	Wire Wrap	10 mOhm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Beryllium Copper	0.51 in	12.95 mm	Tin	UL94 V-0	2.54 mm	0.1 in	Open Frame	-55 °C	125 °C	Through Hole	Gold	3 A	0.1 in	2.54 mm	36	0.6 in	15.24 mm	DIP	Flash	Brass Alloy
Mill-Max Manufacturing Corp. 123-47-952-41-001000	Wire Wrap	10 mOhm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Beryllium Copper	0.51 in	12.95 mm	Tin	UL94 V-0	2.54 mm	0.1 in	Open Frame	-55 °C	125 °C	Through Hole	Gold	3 A	0.1 in	2.54 mm		0.9 in	22.86 mm	DIP	Flash	Brass Alloy
Mill-Max Manufacturing Corp. 123-47-320-41-001000	Solder		Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Beryllium Copper			Tin		2.54 mm	0.1 in	Open Frame	-55 °C	125 °C	Through Hole	Gold	3 A	0.1 in	2.54 mm	20	0.3 "	7.62 mm	DIP	Flash	Brass Alloy	3.18 mm	0.125 in
Mill-Max Manufacturing Corp. 123-47-422-41-001000	Wire Wrap	10 mOhm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Beryllium Copper	0.51 in	12.95 mm	Tin	UL94 V-0	2.54 mm	0.1 in	Open Frame	-55 °C	125 °C	Through Hole	Gold	3 A	0.1 in	2.54 mm	22	0.4 in	10.16 mm	DIP	Flash	Brass Alloy
Mill-Max Manufacturing Corp. 123-47-304-41-001000	Wire Wrap	10 mOhm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Beryllium Copper	0.51 in	12.95 mm	Tin	UL94 V-0	2.54 mm	0.1 in	Open Frame	-55 °C	125 °C	Through Hole	Gold	3 A	0.1 in	2.54 mm		0.3 "	7.62 mm	DIP	Flash	Brass Alloy			4
Mill-Max Manufacturing Corp. 123-47-648-41-001000	Wire Wrap	10 mOhm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Beryllium Copper	0.51 in	12.95 mm	Tin	UL94 V-0	2.54 mm	0.1 in	Open Frame	-55 °C	125 °C	Through Hole	Gold	3 A	0.1 in	2.54 mm	48	0.6 in	15.24 mm	DIP	Flash	Brass Alloy
Mill-Max Manufacturing Corp. 123-47-964-41-001000	Wire Wrap	10 mOhm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Beryllium Copper	0.51 in	12.95 mm	Tin	UL94 V-0	2.54 mm	0.1 in	Open Frame	-55 °C	125 °C	Through Hole	Gold	3 A	0.1 in	2.54 mm	64	0.9 in	22.86 mm	DIP	Flash	Brass Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.23
		10	$ 1.07
		28	$ 1.02
		56	$ 1.00
		112	$ 0.95
		252	$ 0.86
		504	$ 0.80

Description

General part information

123-47 Series

14 (2 x 7) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
