SF7984-18PG-3ES

Active

Conxall/Switchcraft

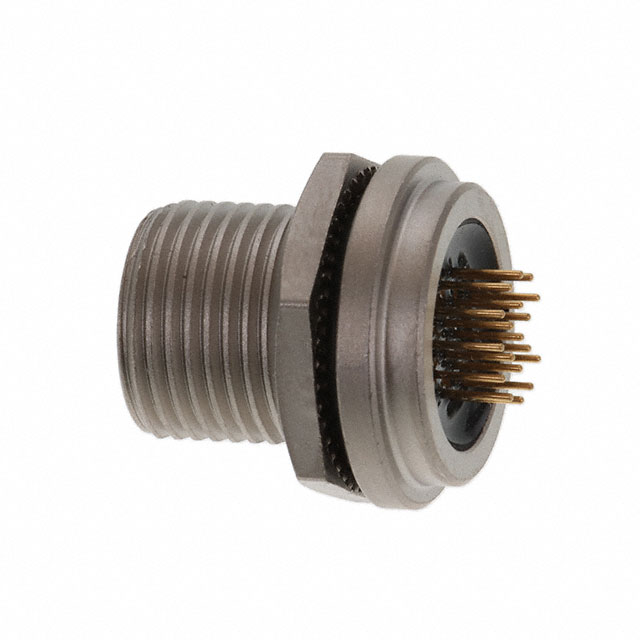

CONN RCPT MALE 18POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 18POS GOLD SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Position Circular Connector Receptacle, Male Pins Solder

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	SF7984-18PG-3ES	SF7984 Series

Applications	-	Lighting, Medical
Color	Silver	Silver
Connector Type	Receptacle, Male Pins	Receptacle, Female Sockets, Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Polyester Resin	Polyester Resin
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	18	12 - 18
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded
Termination	Solder	Solder

CONN RCPT FMALE 12POS SOLDER

Part	Mounting Type	Primary Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Shielding	Contact Material	Termination	Orientation	Mounting Feature	Applications	Contact Finish - Mating	Ingress Protection	Number of Positions	Shell Finish	Color	Shell Material
Conxall/Switchcraft SF7984-12SG-3ES	Panel Mount, Through Hole	Metal	Receptacle, Female Sockets	-40 °C	120 °C	Polyester Resin	Shielded	Copper Alloy	Solder	Keyed	Bulkhead - Front Side Nut	Lighting, Medical	Gold	IP66/IP68	12	Nickel	Silver	Copper Alloy
Conxall/Switchcraft SF7984-18PG-3ES	Panel Mount, Through Hole	Metal	Male Pins, Receptacle	-40 °C	120 °C	Polyester Resin	Shielded	Copper Alloy	Solder	Keyed	Bulkhead - Front Side Nut		Gold	IP66/IP68	18	Nickel	Silver	Copper Alloy
Conxall/Switchcraft SF7984-18SG-3ES	Panel Mount, Through Hole	Metal	Receptacle, Female Sockets	-40 °C	120 °C	Polyester Resin	Shielded	Copper Alloy	Solder	Keyed	Bulkhead - Front Side Nut		Gold	IP66/IP68	18	Nickel	Silver	Copper Alloy
