PTVS1-380C-TH

Active

Bourns Inc.

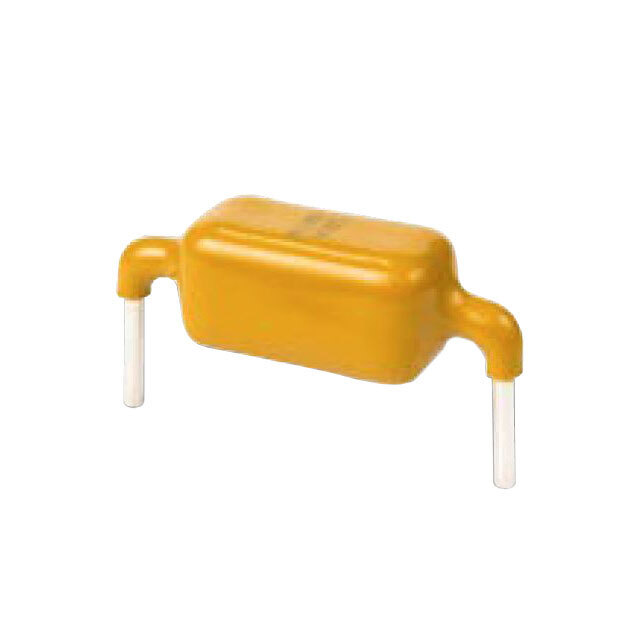

TVS DIODE 380VWM 520VC AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PTVS1-380C-TH

Active

Bourns Inc.

TVS DIODE 380VWM 520VC AXIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PTVS1-380C-TH

Applications	General Purpose
Bidirectional Channels [custom]	1
Capacitance @ Frequency	120 pF
Current - Peak Pulse (10/1000µs)	1 kA
Current - Peak Pulse (10/1000µs)	8/20µs
Current - Peak Pulse (10/1000µs)	1000 A
Mounting Type	Through Hole
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	Axial, Right Angle Bend
Package / Case	24.15 mm
Power Line Protection	False
Supplier Device Package	Axial
Type	Zener
Voltage - Breakdown (Min) [Min]	401 V
Voltage - Clamping (Max) @ Ipp	520 V
Voltage - Reverse Standoff (Typ) [Max]	380 V

PTVS1 Series

Part	Voltage - Clamping (Max) @ Ipp	Type	Current - Peak Pulse (10/1000µs)	Current - Peak Pulse (10/1000µs)	Current - Peak Pulse (10/1000µs)	Applications	Mounting Type	Voltage - Reverse Standoff (Typ)	Voltage - Breakdown (Min) [Min]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance @ Frequency	Package / Case	Bidirectional Channels [custom]	Voltage - Reverse Standoff (Typ) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Clamping (Max) @ Ipp [Max]
Bourns Inc. PTVS1-043C-H	56 V	Zener	1 kA	8/20µs	1000 A	General Purpose	Surface Mount	43 V	48 V	2-DFN (8x6)	125 °C	-55 °C	1000 pF	2-SMD No Lead	1
Bourns Inc. PTVS1-380C-TH	520 V	Zener	1 kA	8/20µs	1000 A	General Purpose	Through Hole		401 V	Axial			120 pF	Axial Right Angle Bend	1	380 V	125 ¯C	-55 °C	24.15 mm
Bourns Inc. PTVS1-022C-H	28 V	Zener	1 kA	8/20µs	1000 A	General Purpose	Surface Mount	22 V	24 V	2-DFN (8x6)	125 °C	-55 °C	2000 pF	2-SMD No Lead	1
Bourns Inc. PTVS1-026C-H	30 V	Zener	1 kA	8/20µs	1000 A	General Purpose	Surface Mount	26 V	28 V	2-DFN (8x6)	125 °C	-55 °C	1500 pF	2-SMD No Lead	1
Bourns Inc. PTVS1-029C-H		Zener	1 kA	8/20µs	1000 A	General Purpose	Surface Mount	29 V	32 V	2-DFN (8x6)	125 °C	-55 °C	1500 pF	2-SMD No Lead	1					34 V
Bourns Inc. PTVS1-058C-H		Zener	1 kA	8/20µs	1000 A	General Purpose	Surface Mount	58 V	64 V	2-DFN (8x6)	125 °C	-55 °C		2-SMD No Lead	1					67 V
Bourns Inc. PTVS1-066C-H		Zener	1 kA	8/20µs	1000 A	General Purpose	Surface Mount		72 V	2-DFN (8x6)	125 °C	-55 °C		2-SMD No Lead	1
Bourns Inc. PTVS1-076C-H		Zener	1 kA	8/20µs	1000 A	General Purpose	Surface Mount	76 V	85 V	2-DFN (8x6)	125 °C	-55 °C		2-SMD No Lead	1					91 V
Bourns Inc. PTVS1-190C-THL	227 V	Zener	1 kA	8/20µs	1000 A	General Purpose	Through Hole		200 V	Axial			274 pF	Axial Right Angle Bend	1	190 V	125 ¯C	-55 °C	24.15 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 31.77
		10	$ 28.23
		25	$ 26.34
		80	$ 24.69
		230	$ 23.05
		440	$ 21.07

Description

General part information

PTVS1 Series

520V (Typ) Clamp 1000A (1kA) (8/20µs) Ipp Tvs Diode Through Hole Axial
