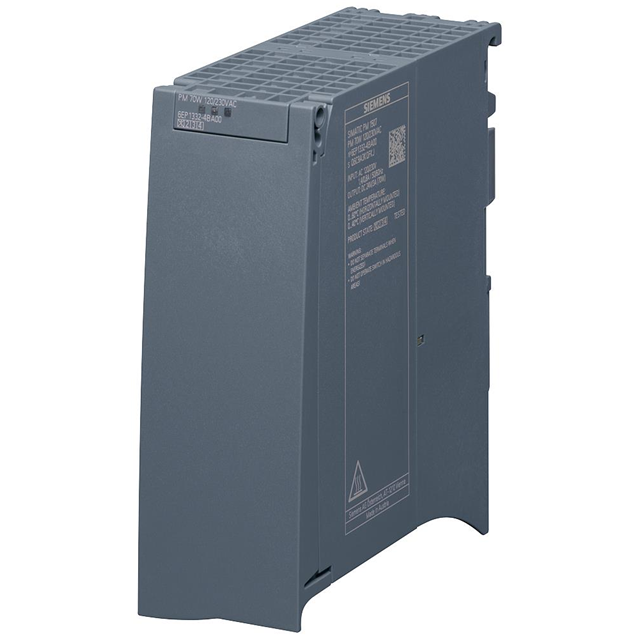

6EP13324BA00 - MFG_6AG13324BA007AA0

6EP13324BA00

Active
Siemens

AC/DC DIN RAIL SUPPLY 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPower Supplies Selection GuidePower Supplies Decision Guide+2
6EP13324BA00 - MFG_6AG13324BA007AA0

6EP13324BA00

Active
Siemens

AC/DC DIN RAIL SUPPLY 24V

Deep-Dive with AI

DocumentsPower Supplies Selection GuidePower Supplies Decision Guide+2

Technical Specifications

Parameters and characteristics for this part

Specification6EP13324BA00
AC Voltage - Input [Max]132 VAC, 264 VAC
AC Voltage - Input [Min]170 VAC, 85 VAC
ApplicationsIndustrial, ITE (Commercial)
Approval AgencycULus, UL, CSA, CE, EAC
Current - Output (Max) [Max]3 A
Efficiency87 %
FeaturesAdjustable Output, IP20
Input TypeAC
Number of Outputs1
Operating Temperature [Max]60 °C
Operating Temperature [Min]0 °C
Size / Dimension [x]129 mm
Size / Dimension [x]5.08 in
Size / Dimension [y]1.97 "
Size / Dimension [y]50 mm
Size / Dimension [z]5.79 in
Size / Dimension [z]147 mm
Standard Number60950-1, UL 508
Voltage - Output 124 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 233.22

Description

General part information

6EP13324 Series

AC/DC DIN RAIL SUPPLY 24V
