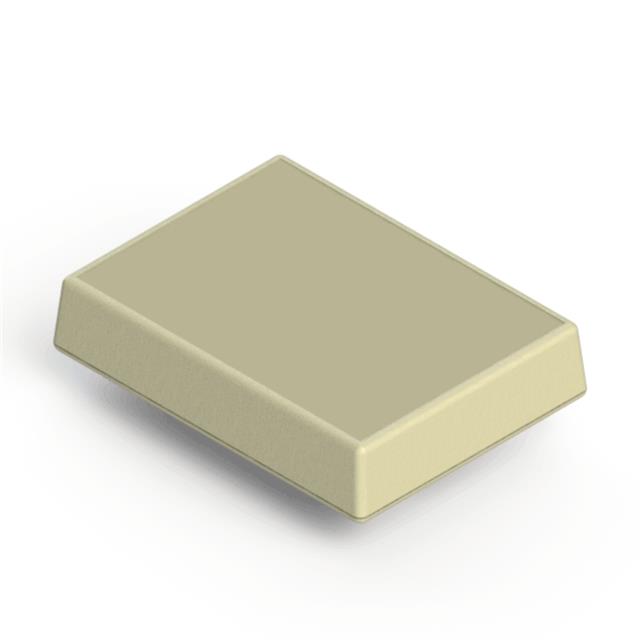

031I,AL

Active

Serpac

BOX ABS ALMOND 4.38"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 4.38"L X 3.25"W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031I,AL	031I Series

Area (L x W)	14.2 in²	14.2 in²
Area (L x W)	92 cm˛	92 cm˛
Color	Almond	Black, Gray, Almond
Container Type	Box	Box
Features	PCB Supports	PCB Supports
Height [z]	22.86 mm	22.86 mm
Height [z]	0.9 in	0.9 in
Material	Plastic, ABS	Plastic, ABS
Material Flammability Rating	UL94 HB	UL94 HB
Ratings	IP40, NEMA 1	IP40, NEMA 1
Thickness	2.54 mm	2.54 mm
Thickness	0.1 in	0.1 in
Weight	0.15 lbs	0.15 lbs
Weight	68.04 g	68.04 g

BOX ABS BLACK 4.38"L X 3.25"W

Part	Material Flammability Rating	Container Type	Height [z]	Height [z]	Ratings	Thickness	Thickness	Material	Features	Weight	Weight	Area (L x W)	Area (L x W)	Color
Serpac 031I,BK	UL94 HB	Box	22.86 mm	0.9 in	IP40, NEMA 1	2.54 mm	0.1 in	Plastic, ABS	PCB Supports	0.15 lbs	68.04 g	14.2 in²	92 cm˛	Black
Serpac 031I,GY	UL94 HB	Box	22.86 mm	0.9 in	IP40, NEMA 1	2.54 mm	0.1 in	Plastic, ABS	PCB Supports	0.15 lbs	68.04 g	14.2 in²	92 cm˛	Gray
Serpac 031I,AL	UL94 HB	Box	22.86 mm	0.9 in	IP40, NEMA 1	2.54 mm	0.1 in	Plastic, ABS	PCB Supports	0.15 lbs	68.04 g	14.2 in²	92 cm˛	Almond

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Almond 4.380" L x 3.250" W (111.25mm x 82.55mm) X 0.900" (22.86mm)

Technical documentation and resources

No documents available
