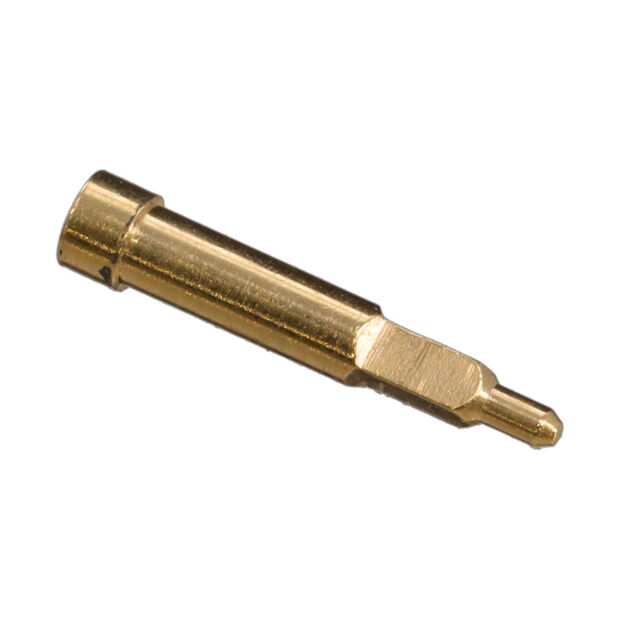

5970-2-15-15-32-14-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Technical Specifications

Parameters and characteristics for this part

Specification	5970-2-15-15-32-14-04-0

Accepts Pin Diameter [Max]	0.025 "
Accepts Pin Diameter [Max]	0.64 mm
Accepts Pin Diameter [Min]	0.015 "
Accepts Pin Diameter [Min]	0.38 mm
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Beryllium Copper
Flange Diameter [diameter]	0.062 in
Flange Diameter [diameter]	1.57 mm
Length - Overall [x]	0.32 in
Length - Overall [x]	8.13 mm
Mounting Hole Diameter [diameter]	0.99 mm
Mounting Hole Diameter [diameter]	0.039 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Socket Depth	0.018 in
Socket Depth	0.45 mm
Tail Diameter [diameter]	0.025 in
Tail Diameter [diameter]	0.64 mm
Tail Type	Standard Tail
Termination	Press-Fit

Part	Tail Type	Socket Depth	Socket Depth	Contact Finish	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Tail Diameter [diameter]	Tail Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Termination	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Tail Diameter	Tail Diameter
Mill-Max Manufacturing Corp. 5970-2-15-15-32-14-04-0	Standard Tail	0.018 in	0.45 mm	Gold	Beryllium Copper	10 Áin	0.25 Ám	0.025 in	0.64 mm	0.062 in	1.57 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	Press-Fit	0.32 in	8.13 mm	0.99 mm	0.039 in	-55 °C	125 °C
Mill-Max Manufacturing Corp. 5970-2-15-80-32-84-04-0	Standard Tail	0.018 in	0.45 mm	Tin	Beryllium Copper	100 µin	2.54 µm	0.025 in	0.64 mm	0.062 in	1.57 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	Press-Fit	0.32 in	8.13 mm	0.99 mm	0.039 in	-55 °C	125 °C
Mill-Max Manufacturing Corp. 5970-2-15-01-32-27-04-0	Standard Tail	0.175 in	4.45 mm	Gold	Beryllium Copper	30 Áin	0.76 Ám			0.062 in	1.57 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	Press-Fit	0.32 in	8.13 mm	0.99 mm	0.039 in	-55 °C	125 °C	0.64 mm	0.025 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Standard Tail Press-Fit
