MWCT1200CFM

Active

Freescale Semiconductor - NXP

5W, MULTI-COIL, 5V, STANDARD, QF

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

5W, MULTI-COIL, 5V, STANDARD, QF

Technical Specifications

Parameters and characteristics for this part

Specification	MWCT1200CFM

Applications	Wireless Power Transmitter
Current - Supply	300 µA
Mounting Type	Wettable Flank, Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

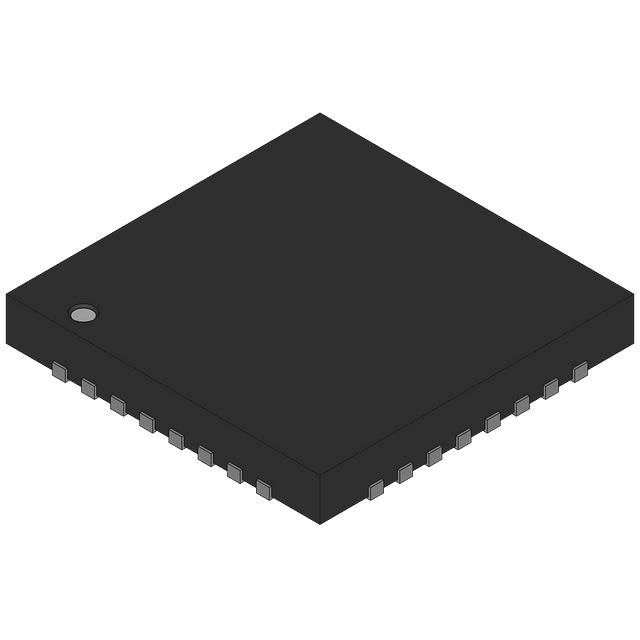

Package / Case	32-VFQFN Exposed Pad
Supplier Device Package	32-HVQFN (5x5)
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.7 V

Part	Applications	Mounting Type	Package / Case	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply	Voltage - Supply [Min]	Voltage - Supply [Max]
Freescale Semiconductor - NXP MWCT1200CFM	Wireless Power Transmitter	Surface Mount Wettable Flank	32-VFQFN Exposed Pad	32-HVQFN (5x5)	85 °C	-40 °C	300 µA	2.7 V	3.6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	125	$ 2.41

General part information

Wireless Power Transmitter PMIC 32-HVQFN (5x5)

Technical documentation and resources

No documents available
