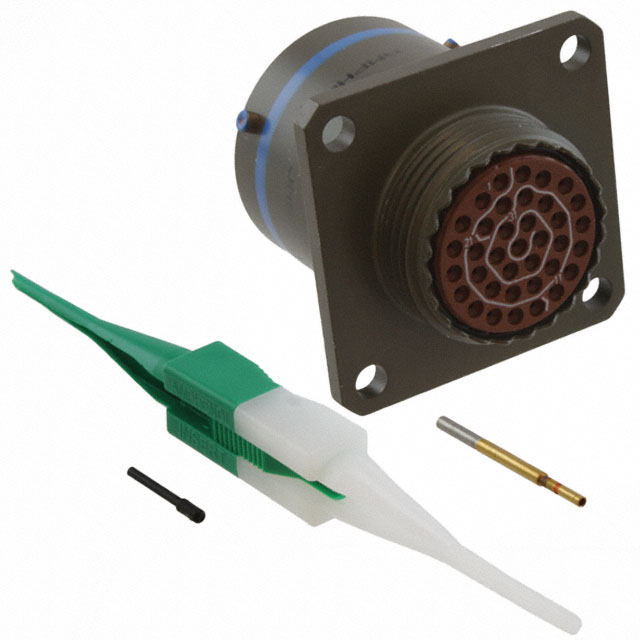

MS27656T15B35P
ActiveAmphenol Aerospace Operations
CONN RCPT MALE 37POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS27656T15B35P
ActiveAmphenol Aerospace Operations
CONN RCPT MALE 37POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS27656T15B35P |
|---|---|
| Applications | Aviation, Marine, Military |
| Color | Olive Drab |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Fastening Type | Bayonet Lock |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Plastic |
| Mounting Feature | Flange |
| Number of Positions | 37 |
| Operating Temperature [Max] | 347 °F |
| Operating Temperature [Min] | -65 ░C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-38999 Series I |
| Shell Material | Aluminum |
| Shell Size - Insert [Max] | 35 |
| Shell Size - Insert [Min] | 15 |
| Shielding | Unshielded |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 62.78 | |
| 10 | $ 54.41 | |||
| 25 | $ 48.01 | |||
| 50 | $ 42.96 | |||
| 100 | $ 37.67 | |||
| Bulk | 1 | $ 47.43 | ||
| 10 | $ 40.55 | |||
| 25 | $ 39.90 | |||
| 50 | $ 39.47 | |||
| 100 | $ 39.09 | |||
| 250 | $ 36.90 | |||
Description
General part information
MS27656T15B Series
37 Position Circular Connector Receptacle, Male Pins Crimp
