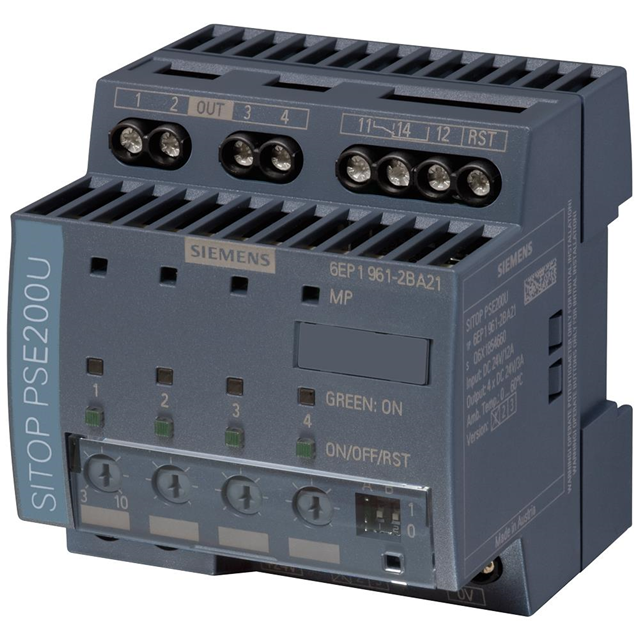

6EP19612BA21

Active

Siemens

DC/DC DIN RAIL SUPPLY 24V

Search across all available documentation for this part.

Active

Siemens

DC/DC DIN RAIL SUPPLY 24V

Technical Specifications

Parameters and characteristics for this part

Specification	6EP19612BA21

Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	cULus, CSA, cUL, UL, CE, cCSAus
Current - Output (Max) [Max]	10 A
DC Voltage - Input (Max) [Max]	30 V
DC Voltage - Input (Min) [Min]	22 V
Efficiency	99 %
Features	Adjustable Output, IP20
Input Type	DC
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Size / Dimension [x]	2.83 "
Size / Dimension [x]	72 mm
Size / Dimension [y]	2.83 in
Size / Dimension [y]	72 mm
Size / Dimension [z]	3.15 "
Size / Dimension [z]	80 mm
Standard Number	60950-1, UL 508
Voltage - Output 1	24 V

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Min) [Min]	Voltage - Output 1	Features	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Input Type	Applications	Current - Output (Max) [Max]	Efficiency	Number of Outputs	Voltage - Output 2	Voltage - Output 3	Current - Output (Max)	Voltage - Output 4
Siemens 6EP19612BA21	3.15 "	2.83 "	2.83 in	72 mm	80 mm	72 mm	cCSAus CE CSA cUL cULus UL	30 V	22 V	24 V	Adjustable Output IP20	-25 °C	60 °C	60950-1 UL 508	DC	Hazardous Locations Industrial ITE (Commercial)	10 A	99 %	1
Siemens 6EP19612BA31	3.15 "	2.83 "	2.83 in	72 mm	80 mm	72 mm	CE cULus EAC UL	30 V	22 V	24 V	Adjustable Output IP20	-25 °C	60 °C	60950-1 UL 508	DC	Industrial ITE (Commercial)		97 %	4	24 V	24 V	3 A	24 V
