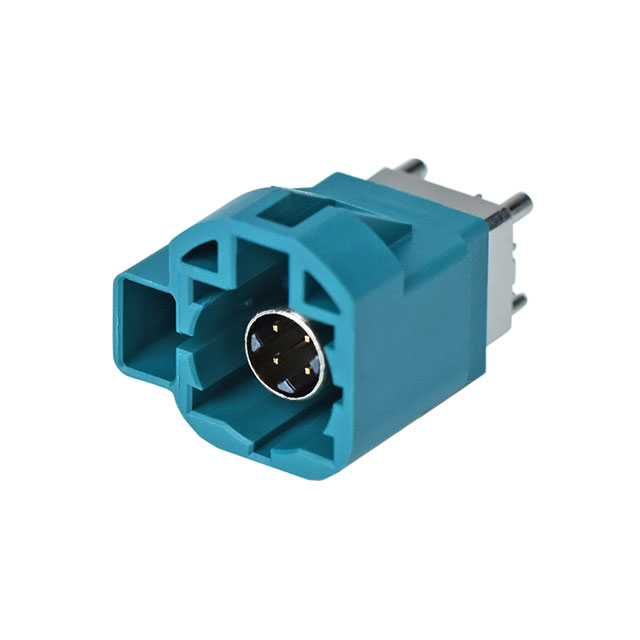

R41-A717Z

Active

Mitsumi Electric Company Ltd

CONN HSD 4+2 NORMAL VERTICAL TYP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R41-A717Z

Active

Mitsumi Electric Company Ltd

CONN HSD 4+2 NORMAL VERTICAL TYP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	R41-A717Z	R41-A Series

Center Contact Material	Copper Alloy	Copper Alloy
Connector Style	Quadraxial, Fakra, HSD®	Quadraxial, Fakra, HSD®
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder	Solder
Dielectric Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Fastening Type	Latch Lock	Latch Lock
Features	Code Z, Board Guide	Code B, Board Guide, Code A, Code K, Board Guide, Code D, Code Z, Code C
Frequency - Max [Max]	2 GHz	2 GHz
Housing Color	-	Cream, Jet, Black, Blue, Signal, Claret, Violet
Impedance	100 Ohms	100 Ohms
Mating Cycles	25	25
Mounting Type	Through Hole	Through Hole
Number of Ports	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Termination	Solder	Solder
Voltage Rating	100 V	100 V

R41-A Series

CONN HSD 4+2 NORMAL VERTICAL TYP

Part	Shield Termination	Dielectric Material	Contact Termination	Impedance	Connector Type	Mating Cycles	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Features	Fastening Type	Connector Style	Center Contact Material	Voltage Rating	Frequency - Max [Max]	Housing Color
Mitsumi Electric Company Ltd R41-A901B	Solder	Liquid Crystal Polymer (LCP)	Solder	100 Ohms	Male Pin, Plug	25	Through Hole	-40 °C	105 ░C	1	Board Guide, Code B	Latch Lock	Fakra, HSD®, Quadraxial	Copper Alloy	100 V	2 GHz	Cream
Mitsumi Electric Company Ltd R41-A624A	Solder	Liquid Crystal Polymer (LCP)	Solder	100 Ohms	Male Pin, Plug	25	Through Hole	-40 °C	105 ░C	1	Board Guide, Code A	Latch Lock	Fakra, HSD®, Quadraxial	Copper Alloy	100 V	2 GHz	Black, Jet
Mitsumi Electric Company Ltd R41-A739K	Solder	Liquid Crystal Polymer (LCP)	Solder	100 Ohms	Male Pin, Plug	25	Through Hole	-40 °C	105 ░C	1	Board Guide, Code K	Latch Lock	Fakra, HSD®, Quadraxial	Copper Alloy	100 V	2 GHz	Blue, Signal
Mitsumi Electric Company Ltd R41-A717A	Solder	Liquid Crystal Polymer (LCP)	Solder	100 Ohms	Male Pin, Plug	25	Through Hole	-40 °C	105 ░C	1	Board Guide, Code A	Latch Lock	Fakra, HSD®, Quadraxial	Copper Alloy	100 V	2 GHz	Black, Jet
Mitsumi Electric Company Ltd R41-A717D	Solder	Liquid Crystal Polymer (LCP)	Solder	100 Ohms	Male Pin, Plug	25	Through Hole	-40 °C	105 ░C	1	Board Guide, Code D	Latch Lock	Fakra, HSD®, Quadraxial	Copper Alloy	100 V	2 GHz	Claret, Violet
Mitsumi Electric Company Ltd R41-A717Z	Solder	Liquid Crystal Polymer (LCP)	Solder	100 Ohms	Male Pin, Plug	25	Through Hole	-40 °C	105 ░C	1	Board Guide, Code Z	Latch Lock	Fakra, HSD®, Quadraxial	Copper Alloy	100 V	2 GHz
Mitsumi Electric Company Ltd R41-A624C	Solder	Liquid Crystal Polymer (LCP)	Solder	100 Ohms	Male Pin, Plug	25	Through Hole	-40 °C	105 ░C	1	Board Guide, Code C	Latch Lock	Fakra, HSD®, Quadraxial	Copper Alloy	100 V	2 GHz	Blue, Signal
Mitsumi Electric Company Ltd R41-A624B	Solder	Liquid Crystal Polymer (LCP)	Solder	100 Ohms	Male Pin, Plug	25	Through Hole	-40 °C	105 ░C	1	Board Guide, Code B	Latch Lock	Fakra, HSD®, Quadraxial	Copper Alloy	100 V	2 GHz	Cream

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 7.03
		10	$ 6.36
		25	$ 6.00
		50	$ 5.86
	Tape & Reel (TR)	150	$ 5.57
		300	$ 4.98
		450	$ 4.69
		750	$ 4.39
		1050	$ 4.10
		1500	$ 4.01

Description

General part information

R41-A Series

HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100 Ohms Through Hole Solder
