704.093.018I
ActiveEAO

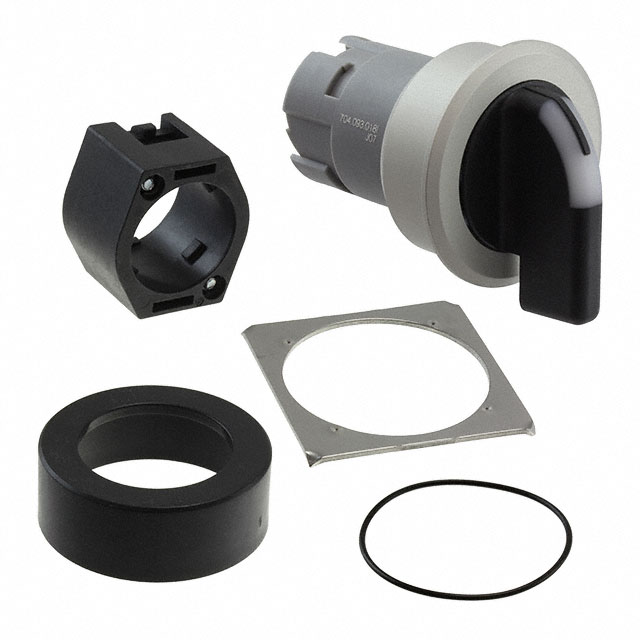

SELECTOR SWITCH-ACTUATOR ILLUMINATED 3 POSITIONS NATURAL FLAT D35 MAIN-0-MAIN LONG LEVER ALU
Deep-Dive with AI
Search across all available documentation for this part.
704.093.018I
ActiveEAO
SELECTOR SWITCH-ACTUATOR ILLUMINATED 3 POSITIONS NATURAL FLAT D35 MAIN-0-MAIN LONG LEVER ALU
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 704.093.018I | 704.093 Series |
|---|---|---|
| (Select First, Then Apply Filters) Compatible Series | 04, EAO | 04, EAO |
| Actuator Type | Selector | Selector |
| Illumination | Illuminated | Non-Illuminated, Illuminated |
| Panel Cutout Dimensions | 30.5 mm | 22.3 - 30.5 mm |
| Requires | Illumination Source, Contact Block(s) | Contact Block(s), Illumination Source |
| Type | Maintained | Maintained |
704.093 Series
CONFIG SW BODY SELECT NON-ILLUM
| Part | (Select First, Then Apply Filters) Compatible Series | Illumination | Panel Cutout Dimensions | Type | Requires | Actuator Type |
|---|---|---|---|---|---|---|
EAO 704.093.010 | 04, EAO | Non-Illuminated | 30.5 mm | Maintained | Contact Block(s) | Selector |
EAO 704.093.018I | 04, EAO | Illuminated | 30.5 mm | Maintained | Contact Block(s), Illumination Source | Selector |
EAO 704.093.0I | 04, EAO | Illuminated | 22.3 mm | Maintained | Contact Block(s), Illumination Source | Selector |
EAO 704.093.018 | 04, EAO | Non-Illuminated | 30.5 mm | Maintained | Contact Block(s) | Selector |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
704.093 Series
Configurable Switch Body Selector Illuminated
