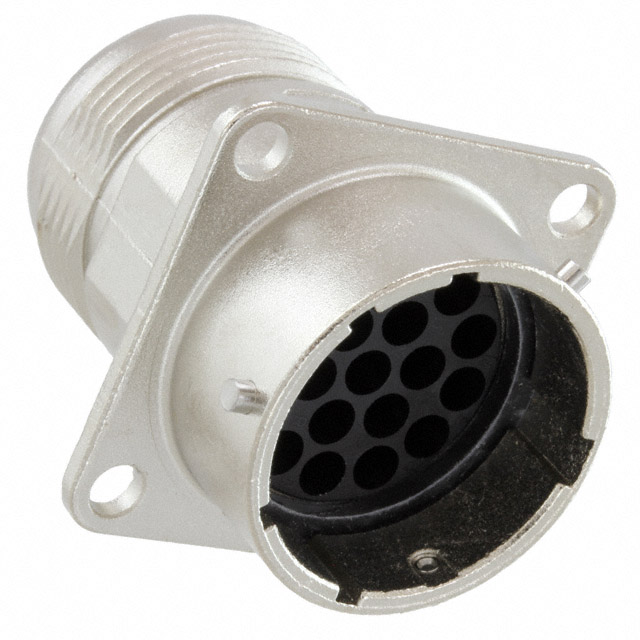

TNM0U16-0019P1L

Active

ITT Cannon, LLC

CONN RCPT HSNG MALE 19POS PNL MT

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN RCPT HSNG MALE 19POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	TNM0U16-0019P1L

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Solder Cup, Solder, Crimp
Fastening Type	Detent Lock
Housing Color	Silver
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	19
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	16-0019
Shielding	Shielded
Type	For Male Pins

Part	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Note	Material Flammability Rating	Type	Shell Material	Connector Type	Contact Shape	Mounting Feature	Shell Finish	Housing Color	Contact Type	Shielding	Fastening Type	Insert Material	Shell Size - Insert
ITT Cannon, LLC TNM0U16-0019P1L	19	105 ░C	-55 °C	Contacts Not Included	UL94 V-0	For Male Pins	Zinc Alloy	Receptacle Housing	Circular	Flange	Nickel	Silver	Crimp Solder Solder Cup	Shielded	Detent Lock	Nylon Polyamide (PA)	16-0019

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

19 Position Circular Connector Receptacle Housing Panel Mount
