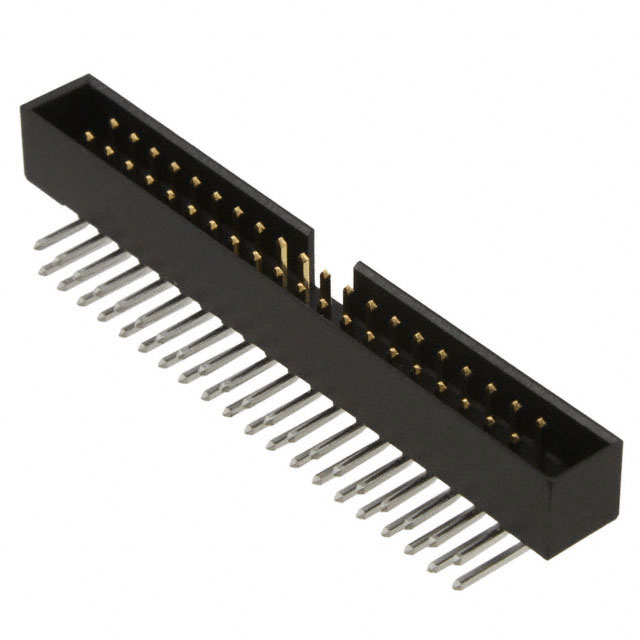

AWHW2-40A-0202-T-R

Obsolete

Assmann WSW Components

CONN HEADER R/A 40POS 2MM

Search across all available documentation for this part.

Obsolete

Assmann WSW Components

CONN HEADER R/A 40POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	AWHW2-40A-0202-T-R

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.5 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height [custom]	5.51 mm
Insulation Height [custom]	0.217 in
Insulation Material	Polyamide (PA9T), Nylon 9T, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Current Rating (Amps)	Mounting Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Insulation Height [custom]	Insulation Height [custom]	Contact Finish Thickness - Mating	Features	Number of Positions	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Contact Type	Contact Length - Post [x]	Contact Length - Post	Contact Finish - Mating	Contact Shape	Termination	Insulation Color	Style	Fastening Type	Connector Type	Insulation Material	Insulation Height	Insulation Height
Assmann WSW Components AWHW2-40A-0202-T-R	UL94 V-0	0.079 in	2 mm	4 mm	0.157 in	All	1.5 A	Through Hole Right Angle	Brass	-40 °C	105 ░C	Shrouded - 4 Wall	5.51 mm	0.217 in	Flash	Keying Slot	40	0.079 in	2 mm	2	Male Pin	0.11 in	2.79 mm	Gold	Square	Solder	Black	Board to Cable/Wire	Push-Pull	Header	Polyamide (PA9T) Nylon 9T Glass Filled
Assmann WSW Components AWHW2-40G-0202-T	UL94 V-0	0.079 in	2 mm	4 mm	0.157 in	All	1.5 A	Through Hole	Brass	-40 °C	105 ░C	Shrouded - 4 Wall			Flash	Keying Slot	40	0.079 in	2 mm	2	Male Pin	0.11 in	2.79 mm	Gold	Square	Solder	Black	Board to Cable/Wire	Push-Pull	Header	Polyamide (PA9T) Nylon 9T Glass Filled	0.226 in	5.74 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole, Right Angle 40 position 0.079" (2.00mm)
