W8A82-8PG-528

Active

Conxall/Switchcraft

CONN RCPT MALE 8P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 8P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	W8A82-8PG-528	W8A82-8 Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening [diameter]	6.6 mm	6.6 mm
Cable Opening [diameter]	7.24 mm	7.24 mm
Cable Opening [diameter]	0.285 in, 0.26 in	0.26 - 0.285 in
Color	Black	Black
Connector Type	Plug, Male Pins	Female Sockets, Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	UV Resistant, Backshell	UV Resistant, Backshell
Ingress Protection	IP69K, IP67	IP69K, IP67
Insert Material	Thermoplastic	Thermoplastic
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions [custom]	8	8
Number of Positions [custom]	6	6
Number of Positions [custom]	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	250 VDC	250 VDC

CONN RCPT FMALE 8P GOLD SLDR CUP

Part	Mounting Type	Contact Finish - Mating	Fastening Type	Voltage Rating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Features	Primary Material	Contact Material	Shielding	Orientation	Applications	Current Rating (Amps)	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Insert Material	Color	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Backshell Material, Plating
Conxall/Switchcraft W8A82-8SG-528	Free Hanging (In-Line)	Gold	Bayonet Lock	250 VDC	Female Sockets, Plug	85 °C	-40 °C	IP67, IP69K	Backshell, UV Resistant	Plastic	Copper Alloy	Unshielded	Keyed	Automotive, Communication Systems, Instrumentation	Varies by Wire Gauge	8	6	2	Thermoplastic	Black	6.6 mm	7.24 mm	0.26 in, 0.285 in	Thermoplastic
Conxall/Switchcraft W8A82-8PG-528	Free Hanging (In-Line)	Gold	Bayonet Lock	250 VDC	Male Pins, Plug	85 °C	-40 °C	IP67, IP69K	Backshell, UV Resistant	Plastic	Copper Alloy	Unshielded	Keyed	Automotive, Communication Systems, Instrumentation	Varies by Wire Gauge	8	6	2	Thermoplastic	Black	6.6 mm	7.24 mm	0.26 in, 0.285 in	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

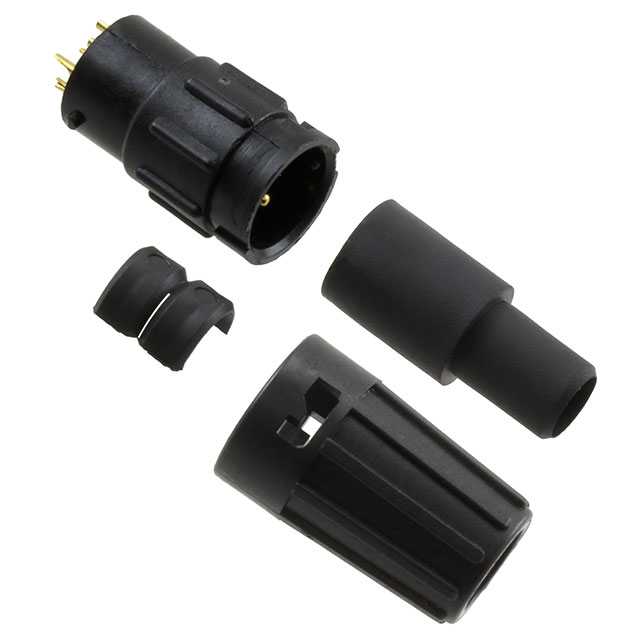

8 (6 + 2 Power) Position Circular Connector Plug, Male Pins Solder Cup
