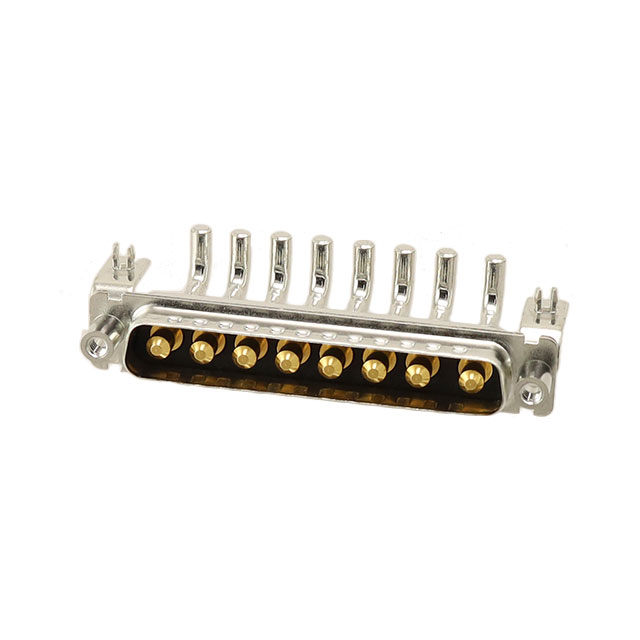

L717TWC8W8PMP3V4FRM6

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 8POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L717TWC8W8PMP3V4FRM6

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 8POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L717TWC8W8PMP3V4FRM6

Backset Spacing	0.845 in
Backset Spacing	21.46 mm
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	16 µin
Contact Finish Thickness	0.41 µm
Contact Material	Brass
Contact Type	Power
Dielectric Material	Thermoplastic
Features	Grounding Indents, Mounting Brackets, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	8
Number of Rows	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	8W8
Shell Size, Connector Layout	4
Termination	Solder
Voltage Rating	300 VDC

L717TWC8 Series

Part	Termination	Number of Rows	Connector Type	Flange Feature	Backset Spacing	Backset Spacing	Dielectric Material	Contact Material	Contact Finish	Contact Type	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout	Shell Size, Connector Layout	Color	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Features	Number of Positions	Connector Style	Current Rating (Amps)	Material Flammability Rating
Amphenol ICC (Commercial Products) L717TWC8W8PMP3V4RRM6	Solder	1	Male Pins Plug	4-40 Board Side	0.845 in	21.46 mm	Thermoplastic	Brass	Gold	Power	300 VDC	16 µin	0.41 µm	8W8	4	Black	155 °C	-55 °C	Panel Mount Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets	8	Combo D-Sub
Amphenol ICC (Commercial Products) L717TWC8W8PMP3V4FRM6	Solder	1	Male Pins Plug	Female Screwlock (4-40) Mating Side	0.845 in	21.46 mm	Thermoplastic	Brass	Gold	Power	300 VDC	16 µin	0.41 µm	8W8	4	Black	155 °C	-55 °C	Panel Mount Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets	8	Combo D-Sub
Amphenol ICC (Commercial Products) L717TWC8W8PMP2V4FRM6	Solder	1	Male Pins Plug	Female Screwlock (4-40) Mating Side	0.375 in	9.52 mm	Thermoplastic	Brass	Gold	Power	300 VDC	16 µin	0.41 µm	8W8	4	Black	155 °C	-55 °C	Panel Mount Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets	8	Combo D-Sub
Amphenol ICC (Commercial Products) L717TWC8W8PP3YRM84	Solder	1	Male Pins Plug	Female Screwlock (4-40) Mating Side			Thermoplastic	Brass	Gold	Power	300 VDC	16 µin	0.41 µm	8W8	4	Black	155 °C	-55 °C	Panel Mount Through Hole	Board Lock Grounding Indents	8	Combo D-Sub
Amphenol ICC (Commercial Products) L717TWC8W8PCY	Solder	1	Male Pins Plug	Housing/Shell (Unthreaded)			Thermoplastic	Brass	Gold	Coax	150 VDC	16 µin	0.41 µm	8W8	4	Black	155 °C	-55 °C	Panel Mount Through Hole	Grounding Indents Shielded	8	Combo D-Sub	0.5 A
Amphenol ICC (Commercial Products) L717TWC8W8PMCV4FRM6	Solder	1	Male Pins Plug	Female Screwlock (4-40) Mating Side	0.406 in	10.3 mm	Thermoplastic	Brass	Gold	Coax	300 VDC	16 µin	0.41 µm	8W8	4	Black	155 °C	-55 °C	Panel Mount Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets	8	Combo D-Sub
Amphenol ICC (Commercial Products) L717TWC8W8PP2YRM54	Solder	1	Male Pins Plug	4-40 Board Side			Thermoplastic	Brass	Gold	Power	300 VDC	16 µin	0.41 µm	8W8	4	Black	155 °C	-55 °C	Panel Mount Through Hole	Board Lock Grounding Indents	8	Combo D-Sub
Amphenol ICC (Commercial Products) L717TWC8W8PP2Y3R	Solder	1	Male Pins Plug	Board Side (M3)			Thermoplastic	Brass	Gold	Power	300 VDC	16 µin	0.41 µm	8W8	4	Black	155 °C	-55 °C	Panel Mount Through Hole	Grounding Indents	8	Combo D-Sub
Amphenol ICC (Commercial Products) L717TWC8W8PMCV3RRM6	Solder	1	Male Pins Plug	Board Side (M3)	0.406 in	10.3 mm	Thermoplastic	Brass	Gold	Coax	300 VDC	16 µin	0.41 µm	8W8	4	Black	155 °C	-55 °C	Panel Mount Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets	8	Combo D-Sub
Amphenol ICC (Commercial Products) L717TWC8W8PP3Y	Solder	1	Male Pins Plug	Housing/Shell (Unthreaded)			Thermoplastic Glass Filled	Brass	Gold	Power	300 VDC	16 µin	0.41 µm	8W8	4	Black	155 °C	-55 °C	Panel Mount Through Hole	Grounding Indents	8	Combo D-Sub		UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 16.99
		10	$ 14.73
		25	$ 13.96
		50	$ 13.76
		100	$ 12.14
		250	$ 11.33
		450	$ 11.09
		950	$ 10.52

Description

General part information

L717TWC8 Series

8 (Power) Position D-Sub, Combo Plug, Male Pins Connector
