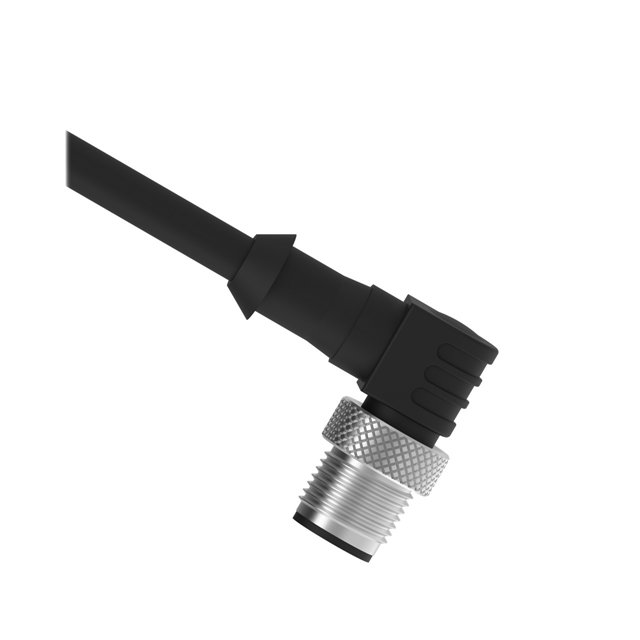

MQDMC-515RA

Active

BANNER ENGINEERING

CORDSET A-CODE M12 SINGLE ENDED

Search across all available documentation for this part.

Active

BANNER ENGINEERING

CORDSET A-CODE M12 SINGLE ENDED

Technical Specifications

Parameters and characteristics for this part

Specification	MQDMC-515RA

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	5
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle, Right Angle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	15 ft
Length [x]	4.57 m
Shielding	Unshielded
Usage	Industrial Environments

Part	1st Connector Gender	Cable Material	Usage	1st Connector Mounting Type	1st Connector Number of Positions	2nd Connector Type	1st Connector Orientation [custom]	Length [x]	Length [x]	Assembly Configuration	1st Connector Number of Positions Loaded	Ingress Protection	Shielding	1st Connector Shell Size - Insert	Cable Type	Color	1st Connector Type	Length	Length
BANNER ENGINEERING MQDMC-515RA	Male Pins	Polyvinyl Chloride (PVC)	Industrial Environments	Free Hanging (In-Line)	5	Wire Leads	Keyed	15 ft	4.57 m	Standard	All	IP67 - Dust Tight Waterproof	Unshielded	M12	Round	Black	Receptacle Right Angle
BANNER ENGINEERING MQDMC-501	Male Pins	Polyvinyl Chloride (PVC)	Industrial Environments	Free Hanging (In-Line)	5	Wire Leads	Keyed			Standard	All	IP67 - Dust Tight Waterproof	Unshielded	M12	Round	Black	Receptacle	1 ft	304.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 46.00
Newark	Each	1	$ 46.00

General part information

Cable Assembly 15.00' (4.57m)
