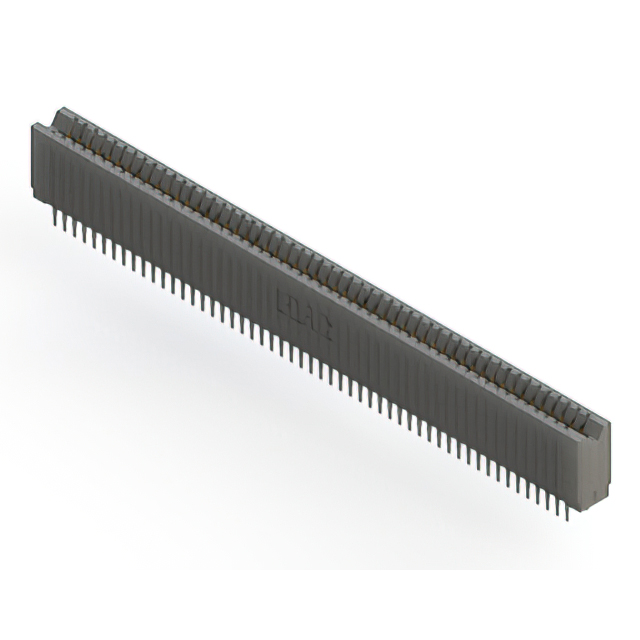

745-106-560-206

Active

EDAC Inc.

CONN EDGE DUAL FML 106POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	745-106-560-206

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever, Make Before Break
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	106
Number of Positions/Bay/Row [custom]	53
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Press-Fit
Termination Rows	2

745-106 Series

Part	Gender	Contact Finish	Material - Insulation	Number of Positions/Bay/Row [custom]	Contact Material	Termination Rows	Contact Type	Read Out	Termination	Pitch [x]	Pitch [x]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]
EDAC Inc. 745-106-540-201	Female	Gold	Polyester Thermoplastic	53	Copper Alloy	2	Cantilever	Dual	Press-Fit Wire Wrap	2.54 mm	0.1 in	Through Hole	-40 °C	105 ░C	Non Specified - Dual Edge	Black	0.76 Ám	30 Áin	2	106	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 745-106-541-201	Female	Gold	Polyester Thermoplastic	53	Copper Alloy	2	Cantilever	Dual	Press-Fit Wire Wrap	2.54 mm	0.1 in	Through Hole	-40 °C	105 ░C	Non Specified - Dual Edge	Black	0.76 Ám	30 Áin	2	106	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 745-106-540-206	Female	Gold	Polyester Thermoplastic	53	Copper Alloy	2	Cantilever	Dual	Press-Fit Wire Wrap	2.54 mm	0.1 in	Through Hole	-40 °C	105 ░C	Non Specified - Dual Edge	Black	0.76 Ám	30 Áin	2	106	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 745-106-560-206	Female	Gold	Polyester Thermoplastic	53	Copper Alloy	2	Cantilever Make Before Break	Dual	Press-Fit	2.54 mm	0.1 in	Through Hole	-40 °C	105 ░C	Non Specified - Dual Edge	Black	0.76 Ám	30 Áin	2	106	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 745-106-541-206	Female	Gold	Polyester Thermoplastic	53	Copper Alloy	2	Cantilever	Dual	Press-Fit Wire Wrap	2.54 mm	0.1 in	Through Hole	-40 °C	105 ░C	Non Specified - Dual Edge	Black	0.76 Ám	30 Áin	2	106	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 745-106-522-201	Female	Gold	Polyester Thermoplastic	53	Copper Alloy	2	Cantilever	Dual	Press-Fit	2.54 mm	0.1 in	Through Hole	-40 °C	105 ░C	Non Specified - Dual Edge	Black	0.76 Ám	30 Áin	2	106	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 745-106-525-201	Female	Gold	Polyester Thermoplastic	53	Copper Alloy	2	Cantilever	Dual	Press-Fit	2.54 mm	0.1 in	Through Hole	-40 °C	105 ░C	Non Specified - Dual Edge	Black	0.76 Ám	30 Áin	2	106	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 745-106-545-206	Female	Gold	Polyester Thermoplastic	53	Copper Alloy	2	Cantilever	Dual	Press-Fit	2.54 mm	0.1 in	Through Hole	-40 °C	105 ░C	Non Specified - Dual Edge	Black	0.76 Ám	30 Áin	2	106	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 745-106-520-206	Female	Gold	Polyester Thermoplastic	53	Copper Alloy	2	Cantilever	Dual	Press-Fit	2.54 mm	0.1 in	Through Hole	-40 °C	105 ░C	Non Specified - Dual Edge	Black	0.76 Ám	30 Áin	2	106	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 745-106-522-206	Female	Gold	Polyester Thermoplastic	53	Copper Alloy	2	Cantilever	Dual	Press-Fit	2.54 mm	0.1 in	Through Hole	-40 °C	105 ░C	Non Specified - Dual Edge	Black	0.76 Ám	30 Áin	2	106	1.37 mm	0.054 "	1.78 mm	0.07 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 14.88

Description

General part information

745-106 Series

106 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
