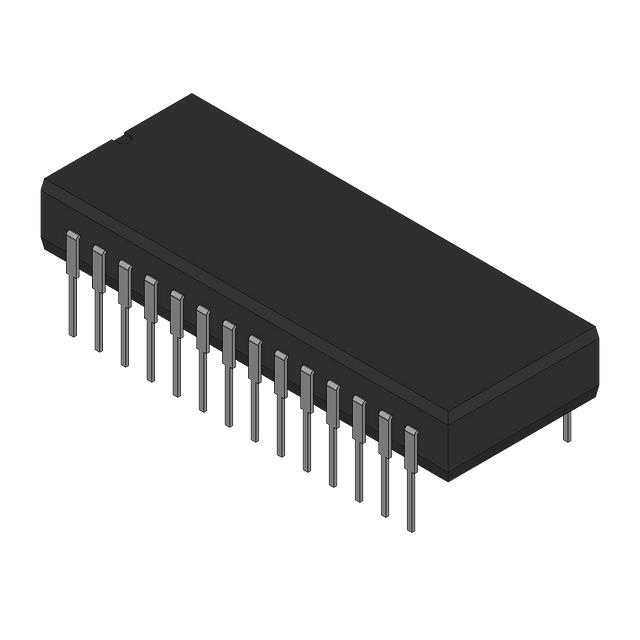

ATMEGA328P-PU
ActiveAtmel
IC MCU 8BIT 32KB FLASH 28DIP
Deep-Dive with AI
Search across all available documentation for this part.
ATMEGA328P-PU
ActiveAtmel
IC MCU 8BIT 32KB FLASH 28DIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ATMEGA328P-PU |
|---|---|
| Connectivity | I2C, SPI, UART/USART |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Data Converters [custom] | 10 b |
| Data Converters [custom] | 6 |
| Mounting Type | Through Hole |
| Number of I/O | 23 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 0.3 in |
| Package / Case | 28-DIP |
| Package / Case | 7.62 mm |
| Program Memory Size | 32 KB |
| Program Memory Type | FLASH |
| RAM Size | 2K x 8 |
| Speed | 20 MHz |
| Supplier Device Package | 28-PDIP |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 103 | $ 2.93 | |
| Tube | 1 | $ 2.89 | ||
| 25 | $ 2.65 | |||
| 100 | $ 2.39 | |||
Description
General part information
ATMEGA328 Series
AVR AVR® ATmega Microcontroller IC 8-Bit 20MHz 32KB (16K x 16) FLASH 28-PDIP
