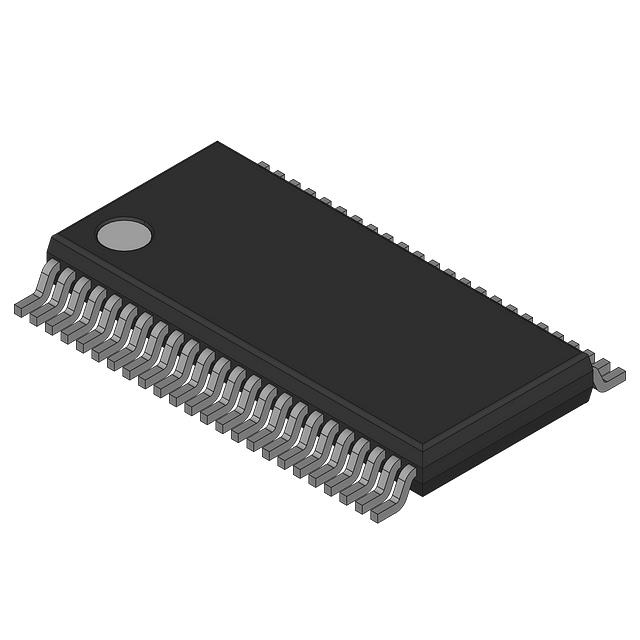

74LVC162244APFG
ActiveIDT, Integrated Device Technology Inc
IC BUFF NON-INVERT 3.6V 48TVSOP
Deep-Dive with AI
Search across all available documentation for this part.
74LVC162244APFG
ActiveIDT, Integrated Device Technology Inc
IC BUFF NON-INVERT 3.6V 48TVSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 74LVC162244APFG |
|---|---|
| Current - Output High, Low [custom] | 12 mA |
| Current - Output High, Low [custom] | 12 mA |
| Logic Type | Buffer, Non-Inverting |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 4 |
| Number of Elements | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 3-State |
| Package / Case | 0.173 in, 4.4 mm |
| Package / Case | 48-TFSOP |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 592 | $ 0.51 | |
74LVC162244 Series
IC BUFF NON-INVERT 3.6V 48TVSOP
| Part | Logic Type | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Package / Case | Output Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Number of Elements | Mounting Type | Current - Output High, Low [custom] | Current - Output High, Low [custom] | Number of Bits per Element |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IDT, Integrated Device Technology Inc 74LVC162244APFG | Buffer, Non-Inverting | 85 °C | -40 °C | 0.173 in, 4.4 mm | 48-TFSOP | 3-State | 2.7 V | 3.6 V | 4 | Surface Mount | 12 mA | 12 mA | 4 |
Description
General part information
74LVC162244 Series
Buffer, Non-Inverting 4 Element 4 Bit per Element 3-State Output 48-TVSOP
Documents
Technical documentation and resources
No documents available
