P16-50-256-12-S

Active

Actuonix Motion Devices Inc

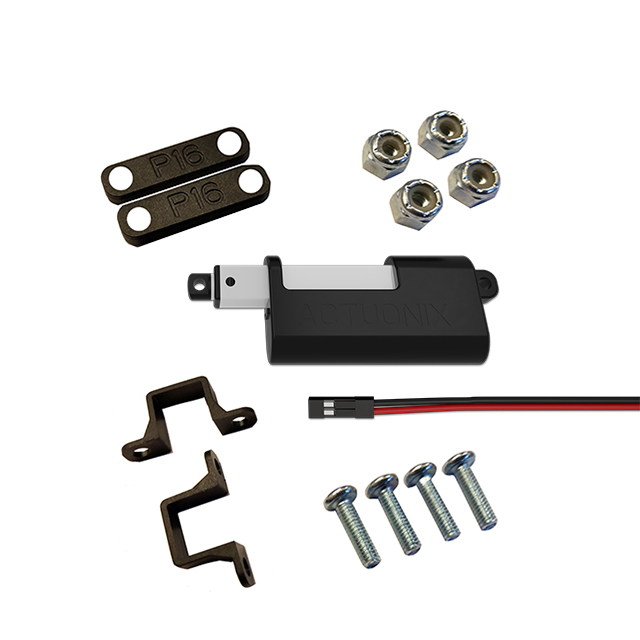

P16-S LINEAR ACTUATOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P16-50-256-12-S

Active

Actuonix Motion Devices Inc

P16-S LINEAR ACTUATOR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P16-50-256-12-S	P16-50 Series

Accuracy	0.3 mm	0.3 mm
Construction	Ball Screw	Ball Screw
Duty Cycle	20 %	20 %
Features	Limit Switches	Limit Switches
Feedback Type	-	Potentiometer
Gear Reduction Ratio	256	22 - 256
Ingress Protection	IP54 - Dust Protected, Water Resistant	IP54 - Dust Protected, Water Resistant
Load Force (Dynamic)	67.44 lbf	11.24 - 67.44 lbf
Load Force (Dynamic)	300 N	50 - 300 N
Load Force (Static)	122.4 lbf	122.4 lbf
Load Force (Static)	500 N	500 N
Motor Type	Brushed	Brushed
Operating Temperature [Max] [custom]	50 °C	50 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Speed	-	0.71 - 1.81 in/s
Speed	-	18 - 46 mm/s
Stroke Length	50 mm	50 mm
Stroke Length	1.969 in	1.969 in
Type	Linear Actuator	Linear Actuator
Voltage - Rated	12 VDC	12 VDC

P16-50 Series

P16-S MICRO LINEAR ACTUATOR

Part	Stroke Length	Stroke Length	Accuracy	Ingress Protection	Speed	Speed	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Construction	Load Force (Static)	Load Force (Static)	Motor Type	Load Force (Dynamic)	Load Force (Dynamic)	Feedback Type	Type	Duty Cycle	Gear Reduction Ratio	Voltage - Rated	Features
Actuonix Motion Devices Inc P16-50-64-12-P	50 mm	1.969 in	0.3 mm	IP54 - Dust Protected, Water Resistant	0.71 in/s	18 mm/s	-10 °C	50 °C	Ball Screw	122.4 lbf	500 N	Brushed	20.23 lbf	90 N	Potentiometer	Linear Actuator	20 %	64	12 VDC
Actuonix Motion Devices Inc P16-50-22-12-S	50 mm	1.969 in	0.3 mm	IP54 - Dust Protected, Water Resistant	1.81 in/s	46 mm/s	-10 °C	50 °C	Ball Screw	122.4 lbf	500 N	Brushed	11.24 lbf	50 N		Linear Actuator	20 %	22	12 VDC	Limit Switches
Actuonix Motion Devices Inc P16-50-64-12-S	50 mm	1.969 in	0.3 mm	IP54 - Dust Protected, Water Resistant	0.71 in/s	18 mm/s	-10 °C	50 °C	Ball Screw	122.4 lbf	500 N	Brushed	20.23 lbf	90 N		Linear Actuator	20 %	64	12 VDC	Limit Switches
Actuonix Motion Devices Inc P16-50-22-12-P	50 mm	1.969 in	0.3 mm	IP54 - Dust Protected, Water Resistant	1.81 in/s	46 mm/s	-10 °C	50 °C	Ball Screw	122.4 lbf	500 N	Brushed	11.24 lbf	50 N	Potentiometer	Linear Actuator	20 %	22	12 VDC
Actuonix Motion Devices Inc P16-50-256-12-P	50 mm	1.969 in	0.3 mm	IP54 - Dust Protected, Water Resistant			-10 °C	50 °C	Ball Screw	122.4 lbf	500 N	Brushed	67.44 lbf	300 N	Potentiometer	Linear Actuator	20 %	256	12 VDC
Actuonix Motion Devices Inc P16-50-256-12-S	50 mm	1.969 in	0.3 mm	IP54 - Dust Protected, Water Resistant			-10 °C	50 °C	Ball Screw	122.4 lbf	500 N	Brushed	67.44 lbf	300 N		Linear Actuator	20 %	256	12 VDC	Limit Switches

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 100.00

Description

General part information

P16-50 Series

P16-S LINEAR ACTUATOR

Documents

Technical documentation and resources
