6245-48-0

Active

Pomona Electronics

TEST LEAD BANANA TO GRABBER 48"

Search across all available documentation for this part.

Active

Pomona Electronics

TEST LEAD BANANA TO GRABBER 48"

Technical Specifications

Parameters and characteristics for this part

Part	Cable Length	Cable Length	Contents	2nd Connector	Configuration	Material - Insulation	Type	Stacking Method	1st Connector	Wire Gauge	Ratings	Ratings	Current Rating (Amps)	Voltage - Rated	Voltage - Rated
Pomona Electronics 6245-48-0	48 in	1219.2 mm	1 Lead Black	Mini Hook	Banana to Grabber Hook	Silicone	DMM Test Leads	Non Stackable	Banana Plug Sheathed Single	18 AWG	300 V	CAT II	5 A	300 VDC	300 VAC
Pomona Electronics 6245-48-02	48 in	1219.2 mm	2 Leads Black and Red	Mini Hook	Banana to Grabber Hook	Silicone	DMM Test Leads	Non Stackable	Banana Plug Sheathed Single	18 AWG	300 V	CAT II	5 A	300 VDC	300 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

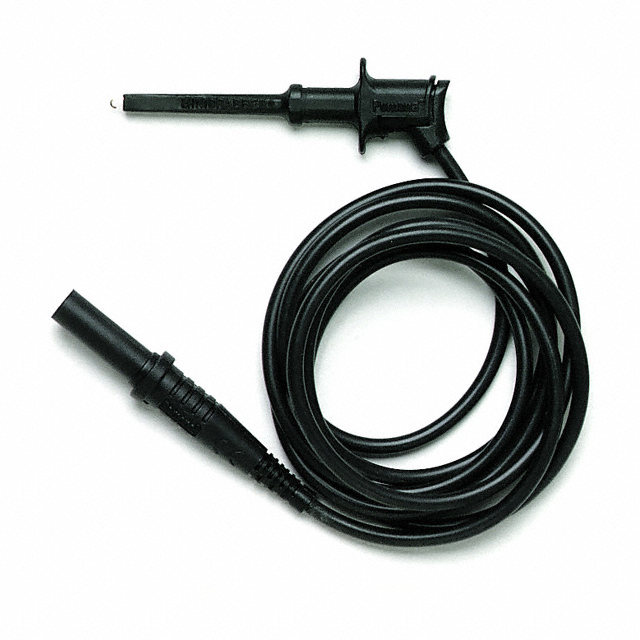

48.0" (1219.20mm) Banana Plug, Single, Sheathed To Mini Hook DMM Test Leads 300VAC, DC
