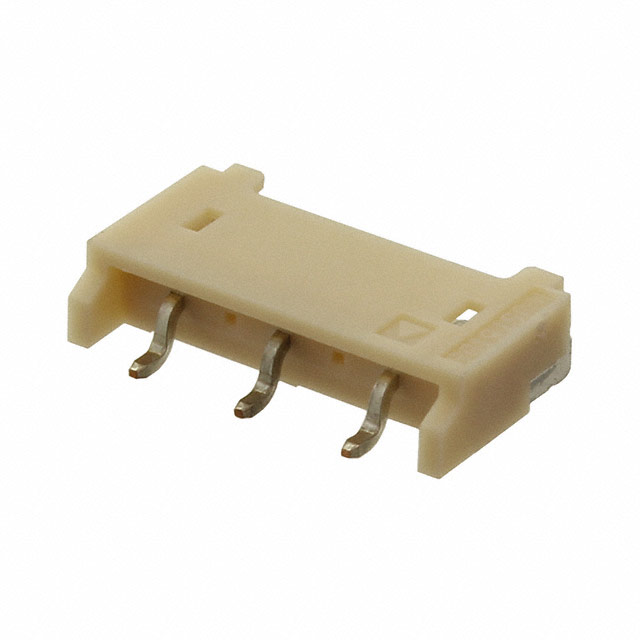

SM03(4.0)B-BHS-1-TB
ActiveJST Sales America Inc.
CONN HEADER SMD R/A 2POS 4MM
Deep-Dive with AI
Search across all available documentation for this part.
SM03(4.0)B-BHS-1-TB
ActiveJST Sales America Inc.
CONN HEADER SMD R/A 2POS 4MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SM03(4.0)B-BHS-1-TB |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Detent Lock |
| Features | Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 3.2 mm |
| Insulation Height | 0.126 in |
| Insulation Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 0.157 " |
| Pitch - Mating | 4 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.60 | |
| 10 | $ 0.53 | |||
| 100 | $ 0.43 | |||
| 500 | $ 0.38 | |||
| Digi-Reel® | 1 | $ 0.60 | ||
| 10 | $ 0.53 | |||
| 100 | $ 0.43 | |||
| 500 | $ 0.38 | |||
| Tape & Reel (TR) | 1000 | $ 0.31 | ||
| 2000 | $ 0.30 | |||
| 3000 | $ 0.28 | |||
| 5000 | $ 0.27 | |||
| 10000 | $ 0.25 | |||
| 25000 | $ 0.24 | |||
Description
General part information
SM03(4.0 Series
Connector Header Surface Mount, Right Angle 3 position 0.157" (4.00mm)
