PTC22DAEN

Obsolete

Sullins Connector Solutions

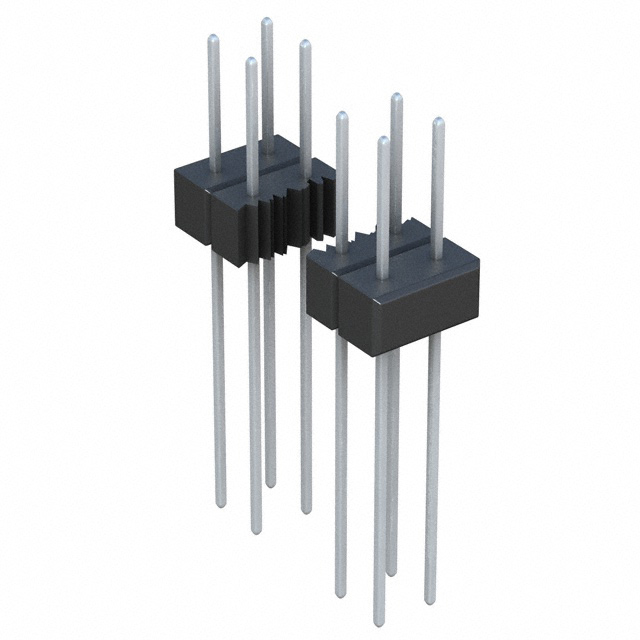

CONN HEADER VERT 44POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PTC22DAEN

Obsolete

Sullins Connector Solutions

CONN HEADER VERT 44POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PTC22DAEN

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	13.21 mm
Contact Length - Post	0.52 "
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polyester, Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	44
Number of Positions Loaded	All
Number of Rows	2
Overall Contact Length	0.85 in
Overall Contact Length	21.59 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PTC22 Series

Part	Fastening Type	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Shape	Material Flammability Rating	Number of Rows	Contact Finish - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Pitch - Mating	Pitch - Mating	Insulation Material	Termination	Insulation Height	Insulation Height	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Contact Material	Number of Positions	Current Rating (Amps)	Shrouding	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Number of Positions Loaded	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length
Sullins Connector Solutions PTC22SFBN	Push-Pull	Through Hole	0.22 in	5.58 mm	Square	UL94 V-0	1	Tin	0.318 "	8.08 mm	0.1 in	2.54 mm	Polyester Thermoplastic	Solder	0.1 in	2.54 mm	Male Pin	2.54 çm	100 çin	16.21 mm	0.638 in	Copper Alloy	22 positions	3 A	Unshrouded	Board to Board Cable	2.54 µm	100 µin	Header	All	Black
Sullins Connector Solutions PTC22DAHN	Push-Pull	Through Hole			Square	UL94 V-0	2	Tin	0.23 in		0.1 in	2.54 mm	Polyester Thermoplastic	Solder	0.1 in	2.54 mm	Male Pin	2.54 çm	100 çin	29.21 mm	1.15 in	Copper Alloy	44	3 A	Unshrouded	Board to Board Cable	2.54 µm	100 µin	Header	All	Black	2.54 mm	0.1 in	5.84 mm	20.83 mm	0.82 in
Sullins Connector Solutions PTC22SAHN	Push-Pull	Through Hole			Square	UL94 V-0	1	Tin	0.23 in		0.1 in	2.54 mm	Polyester Thermoplastic	Solder	0.1 in	2.54 mm	Male Pin	2.54 çm	100 çin	29.21 mm	1.15 in	Copper Alloy	22 positions	3 A	Unshrouded	Board to Board Cable	2.54 µm	100 µin	Header	All	Black			5.84 mm	20.83 mm	0.82 in
Sullins Connector Solutions PTC22SABN	Push-Pull	Through Hole	0.23 in	5.84 mm	Square	UL94 V-0	1	Tin	0.23 in		0.1 in	2.54 mm	Polyester Thermoplastic	Solder	0.1 in	2.54 mm	Male Pin	2.54 çm	100 çin	14.22 mm	0.56 in	Copper Alloy	22 positions	3 A	Unshrouded	Board to Board Cable	2.54 µm	100 µin	Header	All	Black			5.84 mm
Sullins Connector Solutions PTC22SAEN	Push-Pull	Through Hole	0.52 "	13.21 mm	Square	UL94 V-0	1	Tin	0.23 in		0.1 in	2.54 mm	Polyester Thermoplastic	Solder	0.1 in	2.54 mm	Male Pin	2.54 çm	100 çin	21.59 mm	0.85 in	Copper Alloy	22 positions	3 A	Unshrouded	Board to Board Cable	2.54 µm	100 µin	Header	All	Black			5.84 mm
Sullins Connector Solutions PTC22DAEN	Push-Pull	Through Hole	0.52 "	13.21 mm	Square	UL94 V-0	2	Tin	0.23 in		0.1 in	2.54 mm	Polyester Thermoplastic	Solder	0.1 in	2.54 mm	Male Pin	2.54 çm	100 çin	21.59 mm	0.85 in	Copper Alloy	44	3 A	Unshrouded	Board to Board Cable	2.54 µm	100 µin	Header	All	Black	2.54 mm	0.1 in	5.84 mm
Sullins Connector Solutions PTC22DABN	Push-Pull	Through Hole	0.23 in	5.84 mm	Square	UL94 V-0	2	Tin	0.23 in		0.1 in	2.54 mm	Polyester Thermoplastic	Solder	0.1 in	2.54 mm	Male Pin	2.54 çm	100 çin	14.22 mm	0.56 in	Copper Alloy	44	3 A	Unshrouded	Board to Board Cable	2.54 µm	100 µin	Header	All	Black	2.54 mm	0.1 in	5.84 mm
Sullins Connector Solutions PTC22SBBN	Push-Pull	Through Hole Right Angle	0.23 in	5.84 mm	Square	UL94 V-0	1	Tin	0.23 in		0.1 in	2.54 mm	Polyester Thermoplastic	Solder	0.14 in	3.56 mm	Male Pin	2.54 çm	100 çin			Copper Alloy	22 positions	3 A	Unshrouded	Board to Board Cable	2.54 µm	100 µin	Header	All	Black			5.84 mm
Sullins Connector Solutions PTC22SFDN	Push-Pull	Through Hole			Square	UL94 V-0	1	Tin	0.318 "	8.08 mm	0.1 in	2.54 mm	Polyester Thermoplastic	Solder	0.1 in	2.54 mm	Male Pin	2.54 çm	100 çin	21.29 mm	0.838 in	Copper Alloy	22 positions	3 A	Unshrouded	Board to Board Cable	2.54 µm	100 µin	Header	All	Black				10.67 mm	0.42 in
Sullins Connector Solutions PTC22SACN	Push-Pull	Through Hole			Square	UL94 V-0	1	Tin	0.23 in		0.1 in	2.54 mm	Polyester Thermoplastic	Solder	0.1 in	2.54 mm	Male Pin	2.54 çm	100 çin	0.65 in		Copper Alloy	22 positions	3 A	Unshrouded	Board to Board Cable	2.54 µm	100 µin	Header	All	Black			5.84 mm	8.13 mm	0.32 in	16.51 mm
