87247-8

Active

TE Connectivity AMP Connectors

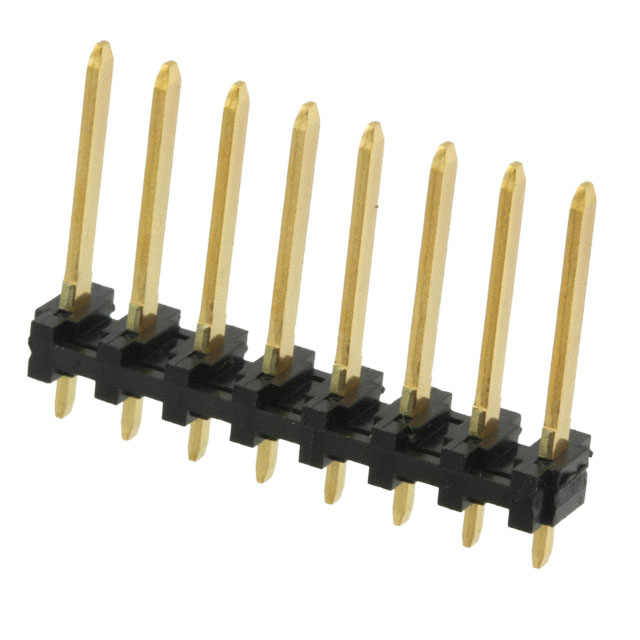

CONN HEADER VERT 8POS 3.96MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

87247-8

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 8POS 3.96MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	87247-8	87247 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Mating	0.587 in	0.587 in
Contact Length - Mating	14.91 mm	14.91 mm
Contact Length - Post [x]	3.18 mm	3.18 mm
Contact Length - Post [x]	0.125 in	0.125 in
Contact Material	Brass	Brass
Contact Shape	Rectangular	Rectangular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.125 in	0.125 in
Insulation Height	3.18 mm	3.18 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	8	2 - 8
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	0.655 in	0.655 in
Overall Contact Length	16.64 mm	16.64 mm
Pitch - Mating	0.156 in	0.156 in
Pitch - Mating	3.96 mm	3.96 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

87247 Series

CONN HEADER VERT 2POS 3.96MM

Part	Contact Material	Number of Positions Loaded	Material Flammability Rating	Insulation Color	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Termination	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Length - Mating	Contact Length - Mating	Shrouding	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Number of Positions	Contact Type	Contact Shape	Connector Type	Mounting Type	Style	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows	Contact Finish - Post	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 87247-2	Brass	All	UL94 V-0	Black	5 A	0.125 in	3.18 mm	30 Áin	0.76 Ám	Thermoplastic	Solder	Gold	-65 ░C	105 ░C	Push-Pull	0.587 in	14.91 mm	Unshrouded	0.156 in	3.96 mm	0.655 in	16.64 mm	2	Male Pin	Rectangular	Header	Through Hole	Board to Board, Cable	3.18 mm	0.125 in	1	Gold	Flash
TE Connectivity AMP Connectors 87247-6	Brass	All	UL94 V-0	Black	5 A	0.125 in	3.18 mm	30 Áin	0.76 Ám	Thermoplastic	Solder	Gold	-65 ░C	105 ░C	Push-Pull	0.587 in	14.91 mm	Unshrouded	0.156 in	3.96 mm	0.655 in	16.64 mm	6	Male Pin	Rectangular	Header	Through Hole	Board to Board, Cable	3.18 mm	0.125 in	1	Gold	Flash
TE Connectivity AMP Connectors 87247-8	Brass	All	UL94 V-0	Black	5 A	0.125 in	3.18 mm	30 Áin	0.76 Ám	Thermoplastic	Solder	Gold	-65 ░C	105 ░C	Push-Pull	0.587 in	14.91 mm	Unshrouded	0.156 in	3.96 mm	0.655 in	16.64 mm	8	Male Pin	Rectangular	Header	Through Hole	Board to Board, Cable	3.18 mm	0.125 in	1	Gold	Flash
TE Connectivity AMP Connectors 87247-7	Brass	All	UL94 V-0	Black	5 A	0.125 in	3.18 mm	30 Áin	0.76 Ám	Thermoplastic	Solder	Gold	-65 ░C	105 ░C	Push-Pull	0.587 in	14.91 mm	Unshrouded	0.156 in	3.96 mm	0.655 in	16.64 mm	7	Male Pin	Rectangular	Header	Through Hole	Board to Board, Cable	3.18 mm	0.125 in	1	Gold	Flash
