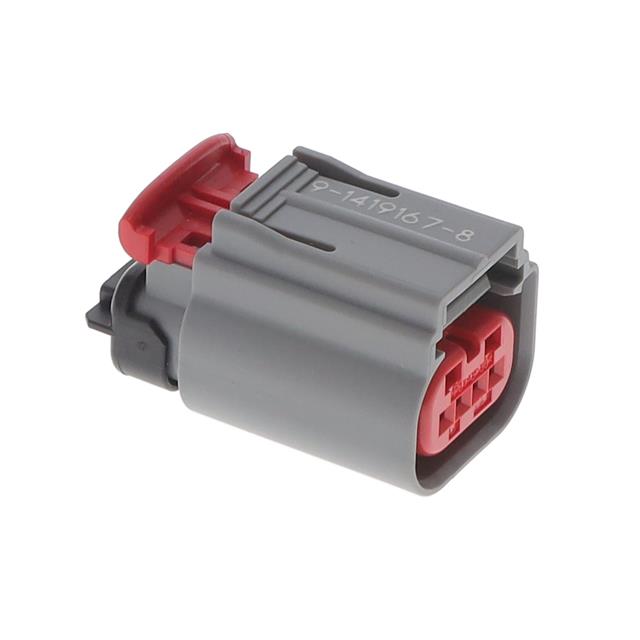

9-1419167-8

Active

TE Connectivity AMP Connectors

1X4 SLD HARN ASY,KEY A W/CPA

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

1X4 SLD HARN ASY,KEY A W/CPA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Plug Gray 0.150" (3.81mm)

Technical documentation and resources

Specification	9-1419167-8	1419167 Series

Color	Gray	Gray, Black
Connector Type	Plug	Receptacle, Plug
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket, Male Pin
Fastening Type	Latch Lock	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	-	Contacts Not Included
Number of Positions	4	4
Number of Positions	-	16
Number of Rows	1	1 - 2
Operating Temperature	-	125 °C
Operating Temperature	-	-40 °C
Pitch [x]	0.15 in	0.1 - 0.15 in
Pitch [x]	3.81 mm	2.54 - 3.81 mm

Part	Number of Rows	Connector Type	Number of Positions	Mounting Type	Color	Pitch [x]	Pitch [x]	Note	Contact Termination	Contact Type	Insulation Material	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions
TE Connectivity AMP Connectors 9-1419167-0	1	Receptacle	4	Free Hanging (In-Line)	Gray	2.54 mm	0.1 in	Contacts Not Included	Crimp	Female Socket
TE Connectivity AMP Connectors 8-1419167-0	1	Plug	4	Free Hanging (In-Line)		2.54 mm	0.1 in	Contacts Not Included	Crimp	Female Socket
TE Connectivity AMP Connectors 9-1419167-8	1	Plug	4	Free Hanging (In-Line)	Gray	3.81 mm	0.15 in		Crimp	Female Socket	Polyamide (PA66), Nylon 6/6, Glass Filled	Latch Lock
TE Connectivity AMP Connectors 6-1419167-1	2	Plug		Free Hanging (In-Line)	Black	2.54 mm	0.1 in	Contacts Not Included	Crimp	Male Pin	Polyamide (PA66), Nylon 6/6, Glass Filled		125 °C	-40 °C	16
