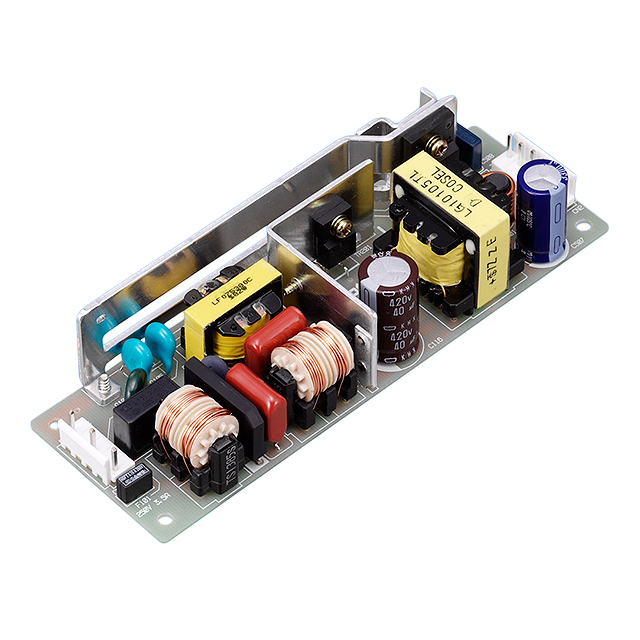

LFA75F-24-Y

Active

Cosel USA, Inc.

AC/DC CONVERTER 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LFA75F-24-Y

Active

Cosel USA, Inc.

AC/DC CONVERTER 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LFA75F-24-Y

Applications	ITE (Commercial)
Approval Agency	UL, TUV, cURus, CE, CSA
Current - Output 1	3.2 A
Efficiency	84.5 %
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Size / Dimension [x]	5.91 "
Size / Dimension [x]	150.1 mm
Size / Dimension [y]	1.97 "
Size / Dimension [y]	50 mm
Size / Dimension [z]	1.32 in
Size / Dimension [z]	33.5 mm
Standard Number	60950-1, 62368-1
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

LFA75F Series

...

Part	Type	Current - Output 1	Mounting Type	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Efficiency	Number of Outputs	Voltage - Isolation	Standard Number	Applications	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Features
Cosel USA, Inc. LFA75F-36	Open Frame	2.1 A	Chassis Mount	-10 °C	158 °F	84.5 %	1	3000 V	60950-1 62368-1	ITE (Commercial)	36 V	5.91 "	1.97 "	1.32 in	50 mm	150.1 mm	33.5 mm	CE CSA cURus TUV UL
Cosel USA, Inc. LFA75F-12-CJ1	Open Frame	6.3 A	Chassis Mount	-10 °C	158 °F	83 %	1	3000 V	60950-1 62368-1	ITE (Commercial)	12 V	5.91 "	1.97 "	1.32 in	50 mm	150.1 mm	33.5 mm	CE CSA cURus TUV UL
Cosel USA, Inc. LFA75F-48-SN	Enclosed	1.6 A	Chassis Mount			84.5 %	1		60950-1 62368-1	ITE (Commercial)	48 V							CE CSA cURus TUV UL	-10 °C	70 °C	75 W	Universal Input
Cosel USA, Inc. LFA75F-5-G	Open Frame	15 A	Chassis Mount	-10 °C	158 °F	80 %	1	3000 V	60950-1 62368-1	ITE (Commercial)	5 V	5.91 "	1.97 "	1.32 in	50 mm	150.1 mm	33.5 mm	CE CSA cURus TUV UL
Cosel USA, Inc. LFA75F-3R3-SY	Open Frame	15 A	Chassis Mount	-10 °C	158 °F	75 %	1	3000 V	60950-1 62368-1	ITE (Commercial)	3.3 V	5.91 "	1.97 "	1.32 in	50 mm	150.1 mm	33.5 mm	CE CSA cURus TUV UL
Cosel USA, Inc. LFA75F-5-SN	Enclosed	15 A	Chassis Mount	-10 °C	158 °F	80 %	1	3000 V	60950-1 62368-1	ITE (Commercial)	5 V	5.91 "	1.97 "	1.32 in	50 mm	150.1 mm	33.5 mm	CE CSA cURus TUV UL
Cosel USA, Inc. LFA75F-24-CJ1	Open Frame	3.2 A	Chassis Mount	-10 °C	158 °F	84.5 %	1	3000 V	60950-1 62368-1	ITE (Commercial)	24 V	5.91 "	1.97 "	1.32 in	50 mm	150.1 mm	33.5 mm	CE CSA cURus TUV UL
Cosel USA, Inc. LFA75F-15-SNJ1Y	Enclosed	5 A	Chassis Mount	-10 °C	158 °F	83 %	1	3000 V	60950-1 62368-1	ITE (Commercial)	15 V	5.91 "	1.97 "	1.32 in	50 mm	150.1 mm	33.5 mm	CE CSA cURus TUV UL
Cosel USA, Inc. LFA75F-24-Y	Open Frame	3.2 A	Chassis Mount	-10 °C	158 °F	84.5 %	1	3000 V	60950-1 62368-1	ITE (Commercial)	24 V	5.91 "	1.97 "	1.32 in	50 mm	150.1 mm	33.5 mm	CE CSA cURus TUV UL
Cosel USA, Inc. LFA75F-12-J1	Open Frame	6.3 A	Chassis Mount	-10 °C	158 °F	83 %	1	3000 V	60950-1 62368-1	ITE (Commercial)	12 V	5.91 "	1.97 "	1.32 in	50 mm	150.1 mm	33.5 mm	CE CSA cURus TUV UL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 67.83
		5	$ 65.77
		10	$ 63.72
		25	$ 61.66
		50	$ 59.61
		100	$ 57.55

Description

General part information

LFA75F Series

Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
