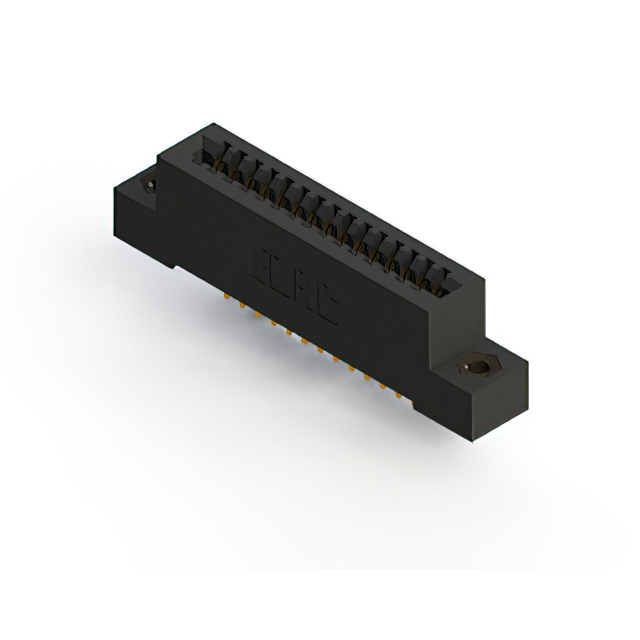

892-015-540-107
ActiveEDAC Inc.
CONN EDGE SINGLE FML 15POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
892-015-540-107
ActiveEDAC Inc.
CONN EDGE SINGLE FML 15POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 892-015-540-107 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 15 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
892-015 Series
| Part | Read Out | Contact Finish | Pitch [x] | Pitch [x] | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Mounting Type | Color | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Termination Rows | Material - Insulation | Card Type | Number of Positions/Bay/Row [custom] | Gender | Number of Positions | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Single | Gold | 2.54 mm | 0.1 in | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Through Hole Right Angle | Black | 125 °C | -40 °C | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Cantilever | 1 | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 15 | Female | 15 | ||
EDAC Inc. | Single | Gold | 2.54 mm | 0.1 in | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Through Hole | Black | 125 °C | -40 °C | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Cantilever | 1 | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 15 | Female | 15 | ||
EDAC Inc. | Single | Gold | 2.54 mm | 0.1 in | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Through Hole | Black | 125 °C | -40 °C | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Cantilever | 1 | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 15 | Female | 15 | ||
EDAC Inc. | Single | Gold | 2.54 mm | 0.1 in | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Through Hole | Black | 125 °C | -40 °C | Copper Alloy | 10 Áin | 0.25 Ám | Cantilever | 1 | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 15 | Female | 15 | |||
EDAC Inc. | Single | Gold | 2.54 mm | 0.1 in | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Through Hole | Black | 125 °C | -40 °C | Copper Alloy | Floating Bobbin Flush Mount | 10 Áin | 0.25 Ám | Cantilever | 1 | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 15 | Female | 15 | 0.116 in | 2.95 mm |
EDAC Inc. | Single | Gold | 2.54 mm | 0.1 in | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Through Hole | Black | 125 °C | -40 °C | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Cantilever | 1 | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 15 | Female | 15 | ||
EDAC Inc. | Single | Gold | 2.54 mm | 0.1 in | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Through Hole | Black | 125 °C | -40 °C | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Cantilever | 1 | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 15 | Female | 15 | ||
EDAC Inc. | Single | Gold | 2.54 mm | 0.1 in | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Through Hole Right Angle | Black | 125 °C | -40 °C | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Cantilever | 1 | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 15 | Female | 15 | ||
EDAC Inc. | Single | Gold | 2.54 mm | 0.1 in | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Through Hole | Black | 125 °C | -40 °C | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Cantilever | 1 | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 15 | Female | 15 | ||
EDAC Inc. | Single | Gold | 2.54 mm | 0.1 in | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Through Hole | Black | 125 °C | -40 °C | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Cantilever | 1 | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 15 | Female | 15 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 82.49 | |
Description
General part information
892-015 Series
15 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
