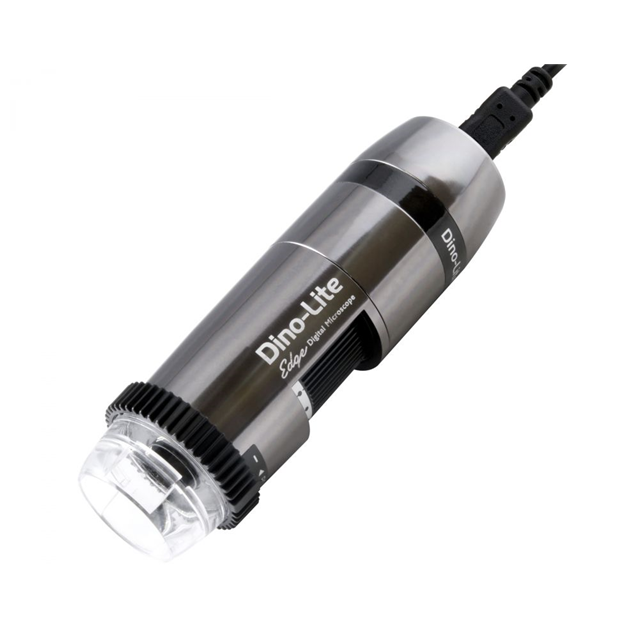

AM4917MZT

Active

Dino-Lite

20X-220X USB MICROSCOPE

Search across all available documentation for this part.

Active

Dino-Lite

20X-220X USB MICROSCOPE

Technical Specifications

Parameters and characteristics commom to parts in this series

20X-220X USB MICROSCOPE

Part	Type	Interface	Illumination	Working Distance [Max]	Working Distance [Min]	Working Distance [Max]	Working Distance [Min]	Magnification Range [Min]	Magnification Range [Max]	Camera Type	Camera Type	Field of View [Min]	Field of View [Max]	Field of View [Min]	Field of View [Max]
Dino-Lite AM4917MZT	Microscope, Portable	USB	LED, White (8)	2.343 "	11.3 mm	59.5 mm	0.445 "	20 x	220 x	1.3 MP	CMOS	0.071 in	0.768 in	1.8 mm	19.5 mm
Dino-Lite AM4917MZTL	Microscope, Portable	USB	LED, White (8)	9.354 "	33.2 mm	237.6 mm	1.307 "	10 x	140 x	1.3 MP	CMOS	0.11 ", 2.8 mm	1.539 ", 39.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1199.00

General part information

Microscope, Portable 20x ~ 220x LED, White (8)

Technical documentation and resources

No documents available
